Performance Aluminum Radiator fits Nissan 240SX 1995-1998 SR20 Engine
The Mishimoto performance aluminum radiator for the Nissan 240SX is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and most importantly, protect your car from overheating whether you drive your vehicle daily or take it for track runs. The Mishimoto aluminum Nissan 240SX radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required. This is the ideal upgrade to the stock Nissan 240SX radiator. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection. A perfect match to the Mishimoto lightweight aluminum Nissan 240sx fan shroud. Also fits Nissan S15
- Direct fit for the 1995-1998 Nissan 240SX S14 with SR20 engine swap
- Provides a bolt-in cooling solution which simplifies the engine-swap process
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.97 thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
- Provides efficient temperature reduction for street and/or track use

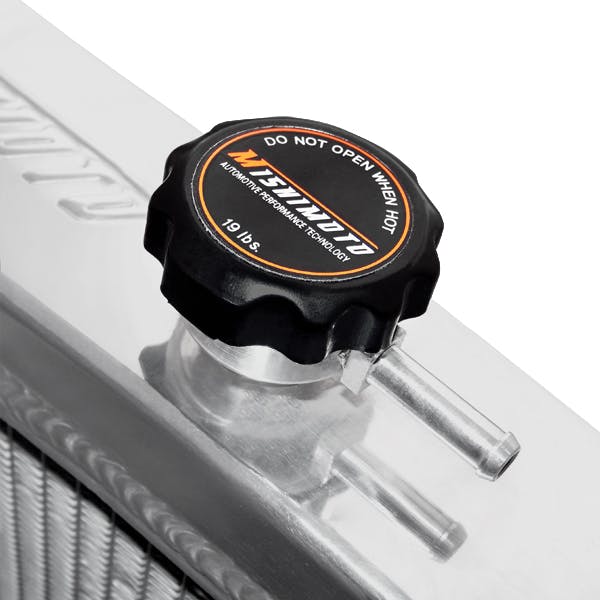

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
Information:
Nissan Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 1995-1998 |
Nissan 240SX |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
25.12 |
| Core Length |
14.13 |
| Core Material |
Aluminum |
| Core Thickness |
1.97 |
| Country of Origin (Primary) |
CN |
| Dimensions |
26.4in x 20in x 2.47in |
| Down Flow Or Cross Flow Type |
Down Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
1.85 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.25 |
| Inlet Location |
Top Left |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.25 |
| Outlet Location |
Bottom Right |
| Overall Height |
26.4 |
| Overall Length |
20 |
| Overall Width |
2.47 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 1995-1998 Nissan 240SX S14 with SR20 engine swap |
| SellingPoint02 |
Provides a bolt-in cooling solution which simplifies the engine-swap process |
| SellingPoint03 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint04 |
Features a two-row, 1.97-in thick, efficient brazed aluminum core |
| SellingPoint05 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint06 |
Provides efficient temperature reduction for street and/or track use |
| SellingPoint07 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint08 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint09 |
Mishimoto Lifetime Warranty |
| SellingPoint1 |
Direct fit for the 1995-1998 Nissan 240SX S14 with SR20 engine swap |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Provides a bolt-in cooling solution which simplifies the engine-swap process |
| SellingPoint3 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint4 |
Features a two-row, 1.97-in thick, efficient brazed aluminum core |
| SellingPoint5 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint6 |
Provides efficient temperature reduction for street and/or track use |
| SellingPoint7 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint8 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint9 |
Mishimoto Lifetime Warranty |
| TechSpec Applications |
1997 Nissan 240sx LE--1995-1997 Nissan 240sx SE |
| TechSpec Chassis Codes |
S14 |
| TechSpec Core Height (in) |
25.12 |
| TechSpec Core Length (in) |
14.13 |
| TechSpec Core Thickness (in) |
1.97 |
| TechSpec DPI |
N/A |
| TechSpec Drain Plug Thread Size |
M10 x 1.25 |
| TechSpec Engine Codes |
SR20DESR20DET |
| TechSpec Fluid Capacity (gal) |
1.85 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.25 |
| TechSpec Material |
N/A |
| TechSpec Note |
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit. |
| TechSpec Outlet (in) |
1.25 |
| TechSpec Overall Height (in) |
26.4 |
| TechSpec Overall Length (in) |
20 |
| TechSpec Overall Width (in) |
2.47 |
| TechSpec Overall Width (ins) |
2.47 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354797589 |
