Aluminum Radiator, fits Dodge 5.9L Cummins 1991-1993

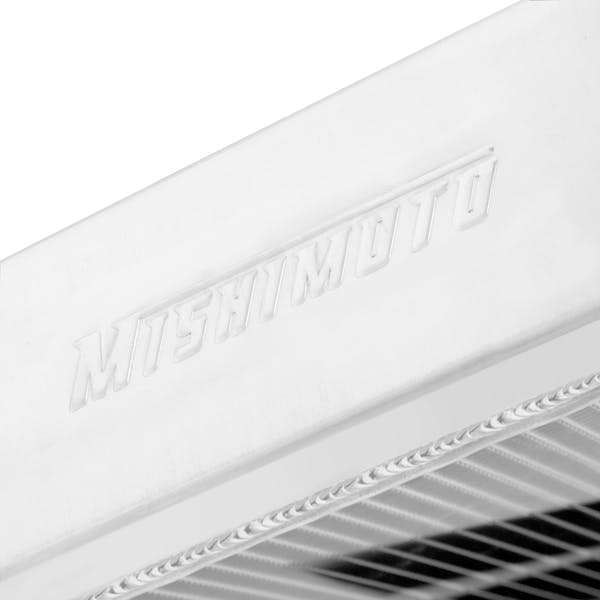

Treat your first-generation Cummins to a dose of reliability with the Mishimoto performance aluminum radiator. This direct-fit radiator features full aluminum construction with precision TIG-welding and a high-quality, brazed aluminum 2-row core. Each radiator is constructed with performance in mind and is designed to provide optimal cooling in even the most demanding environments. The included 1.3 bar high-pressure radiator cap will effectively raise the boiling point of your coolant, providing a safer and more efficient system. Whether you drive your Cummins on the street, in the snow, or through the mud, trust the Mishimoto performance aluminum radiator to keep coolant temperatures under control. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
- Direct fit for 1991?1993 Dodge D/W Series with 5.9L Cummins (w/ intercooler)
- Full aluminum construction for durability and reliability
- Two-row, 2.2 core thickness provides maximum cooling efficiency
- Manufactured with a robust brazed aluminum core

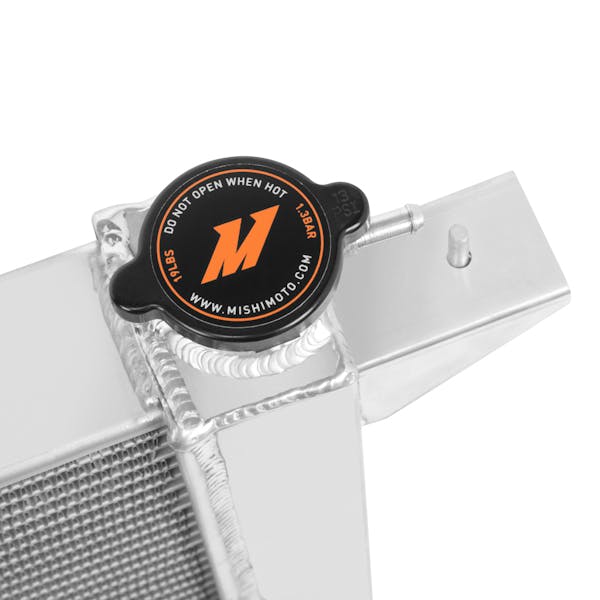

- High-pressure 1.3 bar radiator cap increases coolant boiling point to create a safer and more efficient cooling system
- Includes magnetic drain plug to remove harmful metal fragments from cooling system
- Mishimoto Lifetime Warranty
Information:
Dodge Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 1991-1993 |
Dodge D250 |
| 1991-1993 |
Dodge D350 |
| 1990-1991 |
Dodge Ramcharger |
| 1991-1993 |
Dodge W250 |
| 1991-1993 |
Dodge W350 |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
20.79 |
| Core Length |
25.98 |
| Core Material |
Aluminum |
| Core Thickness |
2.2 |
| Country of Origin (Primary) |
CN |
| Down Flow Or Cross Flow Type |
Cross Flow |
| Drain Plug Included |
Yes |
| Finish |
Polished |
| Fluid Capacity |
4.81 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.73 |
| Inlet Location |
Top Left |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.97 |
| Outlet Location |
Bottom Right |
| Overall Height |
36.5 |
| Overall Length |
23.3 |
| Overall Width |
6.3 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for 1991-1993 Dodge D/W Series with 5.9L Cummins (w/ intercooler) |
| SellingPoint02 |
Full aluminum construction for durability and reliability |
| SellingPoint03 |
Two-row, 2.2-in core thickness provides maximum cooling efficiency |
| SellingPoint04 |
Manufactured with a robust brazed aluminum core |
| SellingPoint05 |
High-pressure 1.3 bar radiator cap increases coolant boiling point to create a safer and more efficient cooling system |
| SellingPoint06 |
Includes magnetic drain plug to remove harmful metal fragments from cooling system |
| SellingPoint07 |
Mishimoto Lifetime Warranty |
| SellingPoint08 |
N/A |
| SellingPoint09 |
N/A |
| SellingPoint1 |
Direct fit for 1991-1993 Dodge D/W Series with 5.9L Cummins (w/ intercooler) |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction for durability and reliability |
| SellingPoint3 |
Two-row, 2.2-in core thickness provides maximum cooling efficiency |
| SellingPoint4 |
Manufactured with a robust brazed aluminum core |
| SellingPoint5 |
High-pressure 1.3 bar radiator cap increases coolant boiling point to create a safer and more efficient cooling system |
| SellingPoint6 |
Includes magnetic drain plug to remove harmful metal fragments from cooling system |
| SellingPoint7 |
Mishimoto Lifetime Warranty |
| SellingPoint8 |
N/A |
| SellingPoint9 |
N/A |
| TechSpec Applications |
1991-1993 Dodge D250 w/ 5.9L Cummins Engine (w/ intercooler)--1991-1993 Dodge D350 w/ 5.9L Cummins Engine (w/ intercooler)--1991-1993 Dodge W250 w/ 5.9L Cummins Engine (w/ intercooler)--1991-1993 Dodge W350 w/ 5.9L Cummins Engine (w/ intercooler)--1990-1991 Dodge Ramcharger w/ 5.2L/5.9L Gas Engine (w/ intercooler) |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Height (in) |
20.79 |
| TechSpec Core Length (in) |
25.98 |
| TechSpec Core Thickness (in) |
2.2 |
| TechSpec DPI |
1198 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
N/A |
| TechSpec Fluid Capacity (gal) |
4.81 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.73 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
N/A |
| TechSpec Outlet (in) |
1.97 |
| TechSpec Overall Height (in) |
36.5 |
| TechSpec Overall Length (in) |
23.3 |
| TechSpec Overall Width (in) |
6.3 |
| TechSpec Overall Width (ins) |
6.3 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354010701 |
