Aluminum Radiator, fits Dodge 5.9L/6.7L Cummins 2003-2009
Mishimoto has developed a performance aluminum radiator for the Dodge 5.9L/6.7L Cummins Engine.The Mishimoto performance aluminum radiator for the Dodge Ram is the ideal upgrade for the factory radiator.It was designed and engineered to maximize cooling efficiency, boost engine functions, and protect your truck from overheating.Whether you use your Dodge Ram for daily driving or as a powerhouse for hauling and towing, you don't want to overlook the importance of installing an upgraded radiator for your engine.A factory radiator cannot handle the heat that comes along with immense power and torque.The Mishimoto Dodge Ram radiator features a lightweight two-row core made of 100-percent brazed aluminum, and it features strong TIG-welded aluminum end tanks for superior durability and longevity.Every Mishimoto performance radiator is a direct factory fit, making installation effortless with no cutting or modification required.Included with the Mishimoto Cummins aluminum radiator is our magnetic drain plug and signature lifetime warranty.
- Direct fit for the 2003-2009 Dodge 5.9L/6.7L Cummins

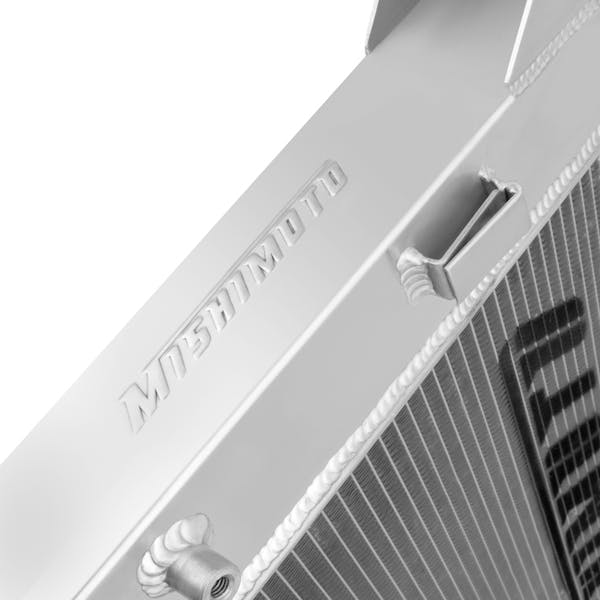

- Full aluminum construction including durable, TIG-welded end tanks

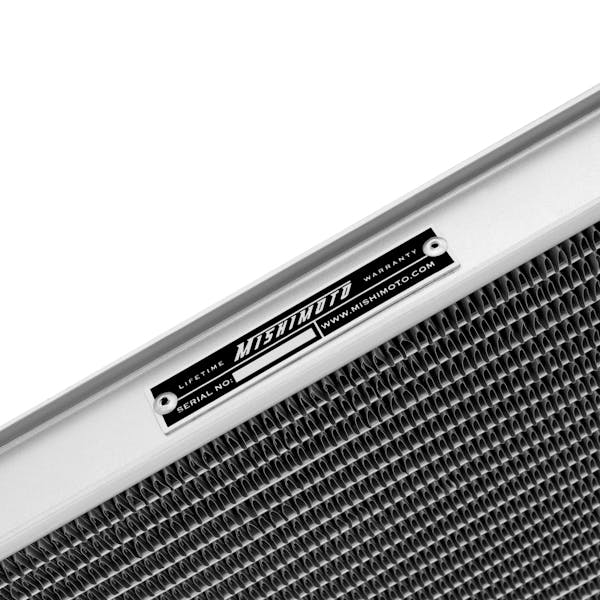

- Features a two-row, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
- Provides efficient temperature reduction for towing, hauling, or during aggressive driving conditions
- Efficient temperature regulation for both stock and modified trucks

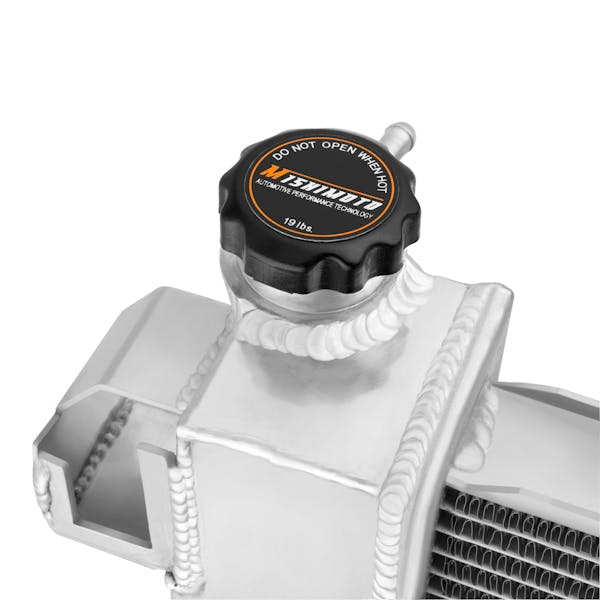

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
Information:
Dodge Ram Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 2003-2009 |
Dodge Ram 2500 |
| 2003-2009 |
Dodge Ram 3500 |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
28.1 |
| Core Length |
27 |
| Core Material |
Aluminum |
| Core Thickness |
1.34 |
| Country of Origin (Primary) |
CN |
| Down Flow Or Cross Flow Type |
Cross Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
6.39 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
2 |
| Inlet Location |
Top Left |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
2 |
| Outlet Location |
Bottom Right |
| Overall Height |
35.5 |
| Overall Length |
30.5 |
| Overall Width |
5.63 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 2003-2009 Dodge 5.9L/6.7L Cummins |
| SellingPoint02 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint03 |
Features a two-row, efficient brazed aluminum core |
| SellingPoint04 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint05 |
Provides efficient temperature reduction for towing, hauling, or during aggressive driving conditions |
| SellingPoint06 |
Efficient temperature regulation for both stock and modified trucks |
| SellingPoint07 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint08 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint09 |
Mishimoto Lifetime Warranty |
| SellingPoint1 |
Direct fit for the 2003-2009 Dodge 5.9L/6.7L Cummins |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint3 |
Features a two-row, efficient brazed aluminum core |
| SellingPoint4 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint5 |
Provides efficient temperature reduction for towing, hauling, or during aggressive driving conditions |
| SellingPoint6 |
Efficient temperature regulation for both stock and modified trucks |
| SellingPoint7 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint8 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint9 |
Mishimoto Lifetime Warranty |
| TechSpec Applications |
Dodge Ram 2500 I6 (5.9L) 2003-2007--Dodge Ram 2500 I6 (6.7L) 2007-2009--Dodge Ram 3500 I6 (5.9L) 2003-2007--Dodge Ram 3500 I6 (6.7L) 2007-2009--Dodge Ram 4500 I6 (6.7L) 2008-2009--Dodge Ram 5500 I6 (6.7L) 2008-2009 |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Height (in) |
28.1 |
| TechSpec Core Length (in) |
27 |
| TechSpec Core Thickness (in) |
1.34 |
| TechSpec DPI |
2711 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
N/A |
| TechSpec Fluid Capacity (gal) |
6.39 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
2 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
N/A |
| TechSpec Outlet (in) |
2 |
| TechSpec Overall Height (in) |
35.5 |
| TechSpec Overall Length (in) |
30.5 |
| TechSpec Overall Width (in) |
5.63 |
| TechSpec Overall Width (ins) |
5.63 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354810356 |
