Performance Aluminum Radiator fits Honda Prelude 1997-2001
A Mishimoto performance aluminum radiator is the ideal upgrade to the stock Honda radiator.Designed and engineered to maximize cooling efficiency, boost engine functions and most importantly protect your car from overheating.Whether you're a daily driver or you take your car to the track, installing an upgraded radiator is essential if you want to lower your risk of engine failure.The Mishimoto performance aluminum radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks which will enhance the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty.A perfect match to the fan shroud kit.This kit will fit the Honda Prelude, Accord and Acura CL.
- Direct fit for the 1997-2001 Honda Prelude 2.2L

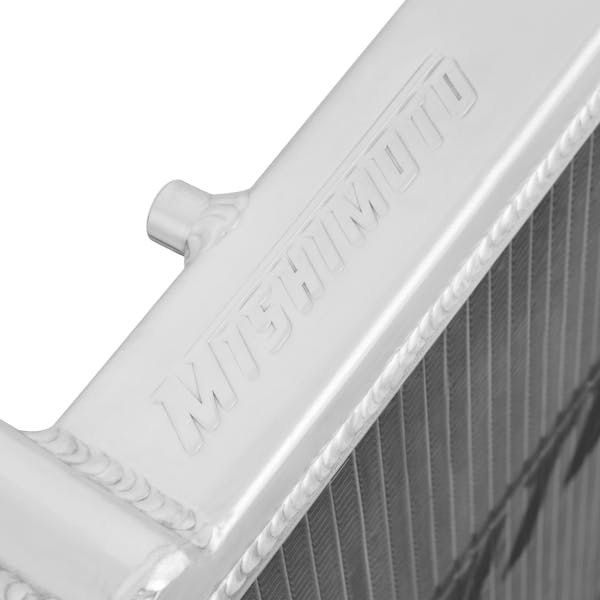

- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.97 thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
- Ideal replacement for an aging and/or clogged stock radiator
- Efficient temperature regulation for both stock and modified vehicles

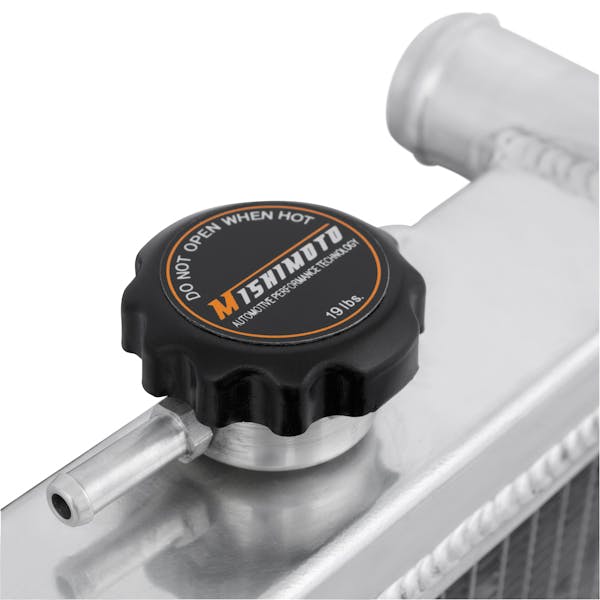

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
Information:
Fand Acura CL.
Application Summary:
| Year |
Make/Model |
| 1997 |
Acura CL |
| 1994-1997 |
Honda Accord |
| 1997-2001 |
Honda Prelude |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
16.85 |
| Core Length |
24.45 |
| Core Material |
Aluminum |
| Core Thickness |
1.97 |
| Country of Origin (Primary) |
CN |
| Dimensions |
27.4in x 17.8in x 2.47in |
| Down Flow Or Cross Flow Type |
Down Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
2.06 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.25 |
| Inlet Location |
Top Center |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.5 |
| Outlet Location |
Bottom Right |
| Overall Height |
27.4 |
| Overall Length |
17.8 |
| Overall Width |
2.47 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 1997-2001 Honda Prelude 2.2L |
| SellingPoint02 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint03 |
Features a two-row, 1.97-in thick, efficient brazed aluminum core |
| SellingPoint04 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint05 |
Ideal replacement for an aging and/or clogged stock radiator |
| SellingPoint06 |
Efficient temperature regulation for both stock and modified vehicles |
| SellingPoint07 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint08 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint09 |
Mishimoto Lifetime Warranty |
| SellingPoint1 |
Direct fit for the 1997-2001 Honda Prelude 2.2L |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint3 |
Features a two-row, 1.97-in thick, efficient brazed aluminum core |
| SellingPoint4 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint5 |
Ideal replacement for an aging and/or clogged stock radiator |
| SellingPoint6 |
Efficient temperature regulation for both stock and modified vehicles |
| SellingPoint7 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint8 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint9 |
Mishimoto Lifetime Warranty |
| TechSpec Applications |
1994-1997 Honda Accord--1997-1999 Acura CL |
| TechSpec Chassis Codes |
BB6CD5CD7 |
| TechSpec Core Height (in) |
16.85 |
| TechSpec Core Length (in) |
24.45 |
| TechSpec Core Thickness (in) |
1.97 |
| TechSpec DPI |
1494 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
H22a4F22b1F22b2 |
| TechSpec Fluid Capacity (gal) |
2.06 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.25 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.----SH models with the ATTS system require an external transmission cooler for this radiator to work. |
| TechSpec Outlet (in) |
1.5 |
| TechSpec Overall Height (in) |
27.4 |
| TechSpec Overall Length (in) |
17.8 |
| TechSpec Overall Width (in) |
2.47 |
| TechSpec Overall Width (ins) |
2.47 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354797541 |
