Performance Aluminum Radiator, fits Nissan Maxima 2004-2008
The Mishimoto performance aluminum radiator for the Nissan Maxima is designed and engineered to maximize cooling efficiency, boost engine functions, and protect your car from overheating.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required.This is the ideal upgrade to the stock Nissan Maxima radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.
- Direct fit for the 2004-2008 Nissan Maxima 3.5L
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

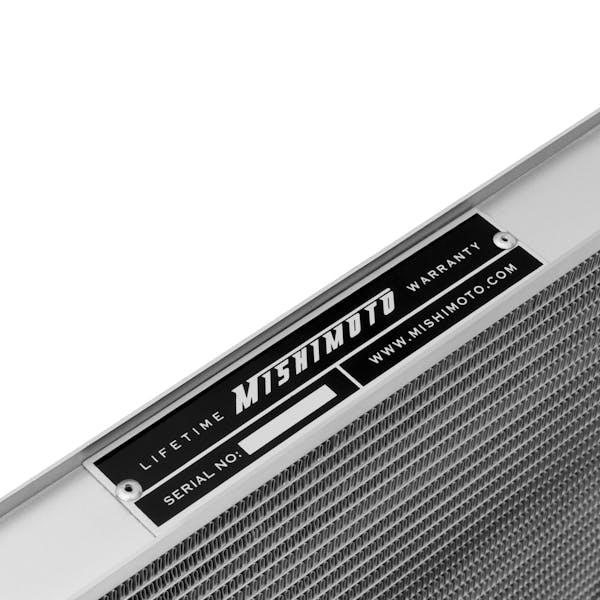

- Mishimoto Lifetime Warranty

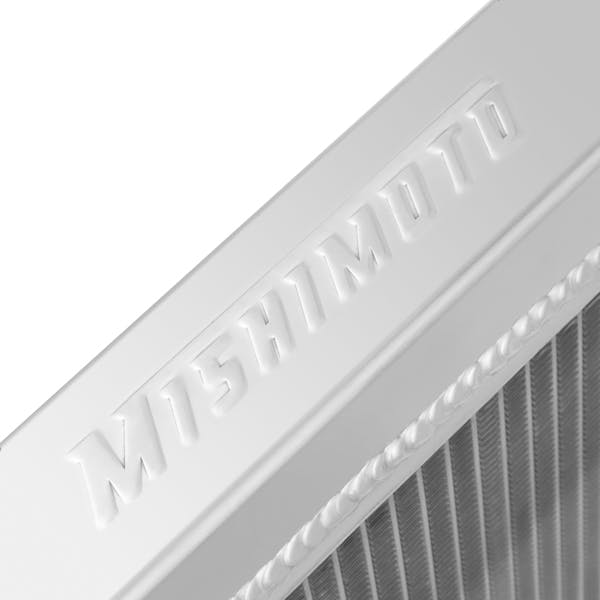

- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.42 thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
- Perfect for use on the street, strip, or track
- Ideal replacement for an aging and/or clogged stock radiator
- Efficient temperature regulation for both stock and modified vehicles

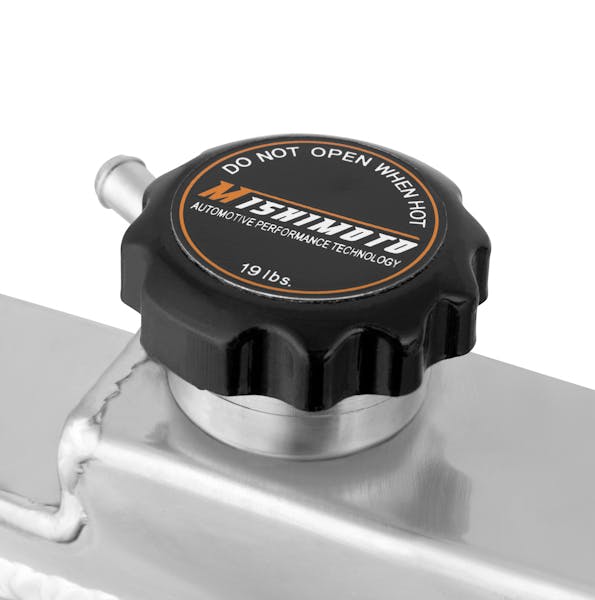

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Information:
Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 2004-2008 |
Nissan Maxima |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
15.75 |
| Core Length |
28.15 |
| Core Material |
Aluminum |
| Core Thickness |
1.42 |
| Country of Origin (Primary) |
CN |
| Dimensions |
29.69in x 20.28in x 1.92in |
| Down Flow Or Cross Flow Type |
Down Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
2.54 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.38 |
| Inlet Location |
Top Left |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.38 |
| Outlet Location |
Bottom Right |
| Overall Height |
29.69 |
| Overall Length |
20.28 |
| Overall Width |
1.92 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 2004-2008 Nissan Maxima 3.5L |
| SellingPoint02 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint03 |
Features a two-row, 1.42-in thick, efficient brazed aluminum core |
| SellingPoint04 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint05 |
Perfect for use on the street, strip, or track |
| SellingPoint06 |
Ideal replacement for an aging and/or clogged stock radiator |
| SellingPoint07 |
Efficient temperature regulation for both stock and modified vehicles |
| SellingPoint08 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint09 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint1 |
Direct fit for the 2004-2008 Nissan Maxima 3.5L |
| SellingPoint10 |
Mishimoto Lifetime Warranty |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint3 |
Features a two-row, 1.42-in thick, efficient brazed aluminum core |
| SellingPoint4 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint5 |
Perfect for use on the street, strip, or track |
| SellingPoint6 |
Ideal replacement for an aging and/or clogged stock radiator |
| SellingPoint7 |
Efficient temperature regulation for both stock and modified vehicles |
| SellingPoint8 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint9 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| TechSpec Applications |
2004 Maxima--2005-2008 Maxima SE--2005-2008 Maxima SL-- |
| TechSpec Chassis Codes |
A34 |
| TechSpec Core Height (in) |
15.75 |
| TechSpec Core Length (in) |
28.15 |
| TechSpec Core Thickness (in) |
1.42 |
| TechSpec DPI |
2415/13005 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
V Q35DE |
| TechSpec Fluid Capacity (gal) |
2.54 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.38 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
This item is for Manual Transmission vehicles. For automatic applications, please purchase the optional Mishimoto Universal Transmission Cooler Kit.
|
| TechSpec Outlet (in) |
1.38 |
| TechSpec Overall Height (in) |
29.69 |
| TechSpec Overall Length (in) |
20.28 |
| TechSpec Overall Width (in) |
1.92 |
| TechSpec Overall Width (ins) |
1.92 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354804416 |
