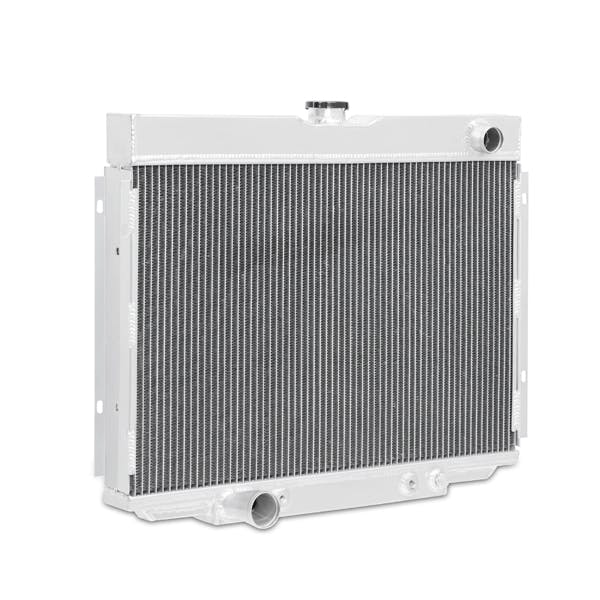

3-Row Performance Aluminum Radiator, fits Ford Mustang Big Block 1968-1970
If you're looking to upgrade your classic Mustang parts, look no further. The Mishimoto 1968--1970 Ford Mustang Big Block X-Line Performance Aluminum Radiator provides your car with enhanced reliability, improved cooling efficiency, and is an ideal upgrade for the brittle stock radiator. Whether you use your classic for daily driving or take it to the track, many people overlook the importance of installing an upgraded radiator in their engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. The Mishimoto Ford Mustang Big Block X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This 1968--1970 Mustang performance radiator also includes a Magnetic Oil Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, this 1968--1970 Mustang radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
- All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
- 3-row core
- Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
- Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
- Billet aluminum fill neck
- Brazed aluminum core with TIG-welded end tanks
- Includes magnetic drain plug
- Mishimoto Lifetime Warranty
Information:
Ford Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 1968-1970 |
Ford Mustang |
| 1968-1970 |
Mercury Cougar |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color |
Silver |
| Core Height |
16.4 |
| Core Length |
24 |
| Core Material |
Aluminum |
| Core Thickness |
2.5 |
| Country of Origin (Primary) |
CN |
| Down Flow Or Cross Flow Type |
Down Flow |
| Drain Plug Included |
Yes |
| Finish |
Polished |
| Fluid Capacity |
5.67 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.5 |
| Inlet Location |
Top Right |
| Install Difficulty |
N/A |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.75 |
| Outlet Location |
Bottom Left |
| Overall Height |
25.4 |
| Overall Length |
21.5 |
| Overall Width |
5.1 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity |
| SellingPoint02 |
3-row core |
| SellingPoint03 |
Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures |
| SellingPoint04 |
Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions |
| SellingPoint05 |
Billet aluminum fill neck |
| SellingPoint06 |
Brazed aluminum core with TIG-welded end tanks |
| SellingPoint07 |
Includes magnetic drain plug |
| SellingPoint08 |
Mishimoto Lifetime Warranty |
| SellingPoint09 |
N/A |
| SellingPoint1 |
All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
3-row core |
| SellingPoint3 |
Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures |
| SellingPoint4 |
Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions |
| SellingPoint5 |
Billet aluminum fill neck |
| SellingPoint6 |
Brazed aluminum core with TIG-welded end tanks |
| SellingPoint7 |
Includes magnetic drain plug |
| SellingPoint8 |
Mishimoto Lifetime Warranty |
| SellingPoint9 |
N/A |
| TechSpec Applications |
1968-1970 Ford Mustang--1968-70 Mercury Cougar |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Height (in) |
16.4 |
| TechSpec Core Length (in) |
24 |
| TechSpec Core Thickness (in) |
2.5 |
| TechSpec DPI |
379 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
390ci (6.4L) V8--428ci (7.0L) V8--429ci (7.0L) V8 |
| TechSpec Fluid Capacity (gal) |
5.67 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.5 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
Transmission Cooler Thread Info:--On Radiator: Female 1/8-inch-27NPT |
| TechSpec Outlet (in) |
1.75 |
| TechSpec Overall Height (in) |
25.4 |
| TechSpec Overall Length (in) |
21.5 |
| TechSpec Overall Width (in) |
5.1 |
| TechSpec Overall Width (ins) |
5.1 |
| TechSpec Rows |
3 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354019773 |
