Performance Aluminum Radiator w/ Stabilizer System, fits Ford Mustang GT Automatic, 1997-2004
Mishimoto has released a revolutionary new radiator for the automatic 1997-2004 Ford Mustang.The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores.Utilizing a patented floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency.The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and an excellent warranty.
- Direct fit for the 1997-2004 Ford Mustang 4.6L with automatic transmission
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Full aluminum construction including durable, TIG-welded end tanks

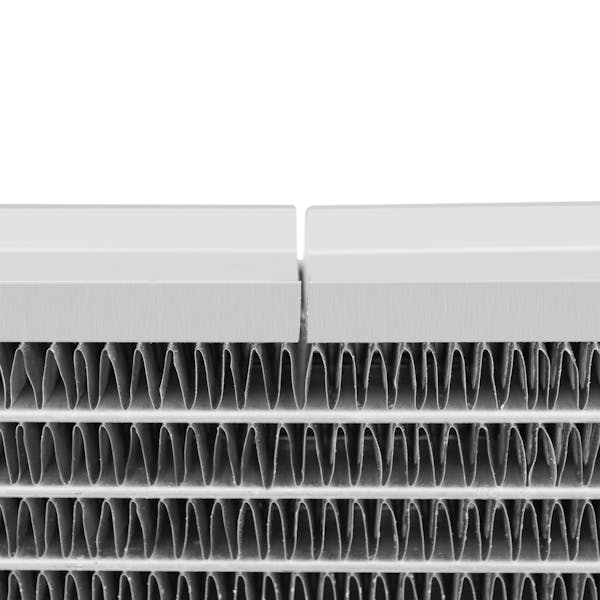

- Features a two-row, 1.57 thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
- Perfect for use on the street or strip
- Efficient temperature regulation for both stock and mo
- Features internal transmission fluid cooler which accepts factory cooler lines

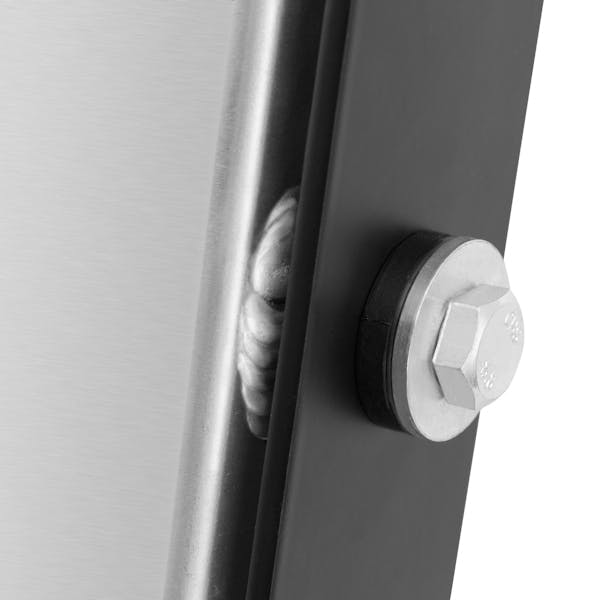

- Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator
Information:
Ford Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 1997-2004 |
Ford Mustang |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
17.24 |
| Core Length |
24.92 |
| Core Material |
Aluminum |
| Core Thickness |
1.57 |
| Country of Origin (Primary) |
CN |
| Down Flow Or Cross Flow Type |
Cross Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
3.97 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.57 |
| Inlet Location |
Top Right |
| Install Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.77 |
| Outlet Location |
Bottom Left |
| Overall Height |
31.57 |
| Overall Length |
19.76 |
| Overall Width |
4.68 |
| Radiator Cap Included |
No |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 1997-2004 Ford Mustang 4.6L with automatic transmission |
| SellingPoint02 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint03 |
Features a two-row, 1.57-in thick, efficient brazed aluminum core |
| SellingPoint04 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint05 |
Perfect for use on the street or strip |
| SellingPoint06 |
Efficient temperature regulation for both stock and mo |
| SellingPoint07 |
Features internal transmission fluid cooler which accepts factory cooler lines |
| SellingPoint08 |
Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator |
| SellingPoint09 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint1 |
Direct fit for the 1997-2004 Ford Mustang 4.6L with automatic transmission |
| SellingPoint10 |
Patent No. US D703,126 |
| SellingPoint11 |
Mishimoto Lifetime Warranty |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint3 |
Features a two-row, 1.57-in thick, efficient brazed aluminum core |
| SellingPoint4 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint5 |
Perfect for use on the street or strip |
| SellingPoint6 |
Efficient temperature regulation for both stock and mo |
| SellingPoint7 |
Features internal transmission fluid cooler which accepts factory cooler lines |
| SellingPoint8 |
Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator |
| SellingPoint9 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| TechSpec Applications |
1997-2001 Ford Mustang Cobra--2002-2004 Ford Mustang SVT Cobra--2001 Ford Mustang Bullitt--2003-2004 Ford Mustang Mach 1 |
| TechSpec Chassis Codes |
SN-95 |
| TechSpec Core Height (in) |
17.24 |
| TechSpec Core Length (in) |
24.92 |
| TechSpec Core Thickness (in) |
1.57 |
| TechSpec DPI |
2139 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
289ci (4.6L) |
| TechSpec Fluid Capacity (gal) |
3.97 |
| TechSpec Includes |
Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--Left & Right Brackets--(4) - Rubber Bushings & Metal Collars--(4) - M8 Flange Head Bolts--(4) - M8 Washers--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.57 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
N/A |
| TechSpec Outlet (in) |
1.77 |
| TechSpec Overall Height (in) |
31.57 |
| TechSpec Overall Length (in) |
19.76 |
| TechSpec Overall Width (in) |
4.68 |
| TechSpec Overall Width (ins) |
4.68 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
Yes |
| GTIN |
00748666001329 |
