Dual Pass Aluminum Racing Radiator, fits Ford Mustang 1979-1993
The Mishimoto Mustang Dual Pass Racing Radiator is the ideal upgrade to the stock OEM Mustang radiator.Made with aircraft quality aluminum and specifically engineered to maximize cooling efficiency, boost engine functions and protect your car from overheating.Note - May require longer water hoses.
- Direct fit for the 1979-1993 Ford Mustang 5.0L

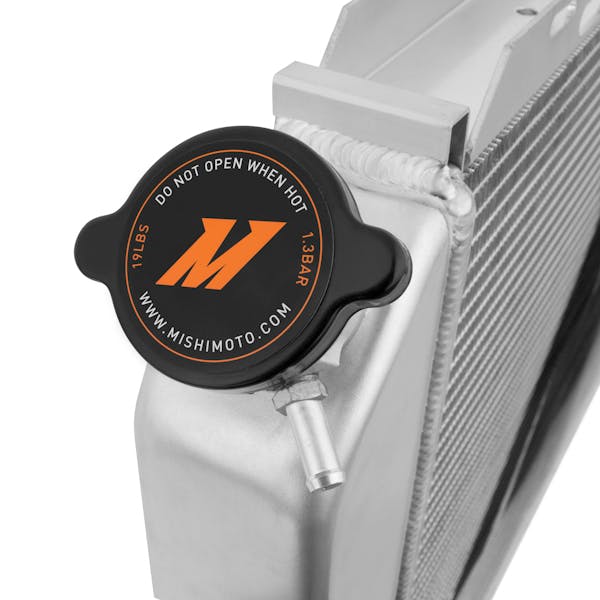

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain
- Plug to capture any metallic debris/fragments in your cooling system

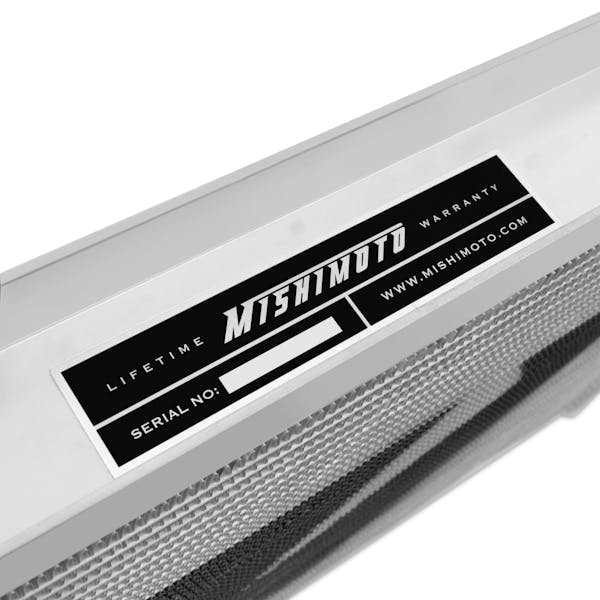

- Mishimoto Lifetime Warranty
- Full aluminum construction including durable, TIG-welded end tanks
- Features a three-row, 2.05 thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
- Perfect for use on the street and strip
- Efficient temperature regulation for both stock and modified vehicles
- Unique dual pass design is precision engineered to provide substantial heat transfer
Information:
Ford Racing Radiator
Application Summary:
| Year |
Make/Model |
| 1980-1983 |
Ford Fairmont |
| 1981-1982 |
Ford Granada |
| 1983-1986 |
Ford LTD |
| 1980-1993 |
Ford Mustang |
| 1980-1988 |
Ford Thunderbird |
| 1982-1987 |
Lincoln Continental |
| 1984-1992 |
Lincoln Mark VII |
| 1980-1986 |
Mercury Capri |
| 1980-1988 |
Mercury Cougar |
| 1983-1986 |
Mercury Marquis |
| 1978-1983 |
Mercury Zephyr |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
16.7 |
| Core Length |
24.45 |
| Core Material |
Aluminum |
| Core Thickness |
2.05 |
| Country of Origin (Primary) |
CN |
| Dimensions |
24.45in x 16.7in x 2.05in |
| Down Flow Or Cross Flow Type |
Cross Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
3.97 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.25 |
| Inlet Location |
Top Right |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.5 |
| Outlet Location |
Bottom Right |
| Overall Height |
19.1 |
| Overall Length |
30 |
| Overall Width |
4.25 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 1979-1993 Ford Mustang 5.0L with relocated lower hose |
| SellingPoint02 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint03 |
Features a three-row, 2.05-in thick, efficient brazed aluminum core |
| SellingPoint04 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint05 |
Perfect for use on the street and strip |
| SellingPoint06 |
Efficient temperature regulation for both stock and modified vehicles |
| SellingPoint07 |
Unique dual pass design is precision engineered to provide substantial heat transfer |
| SellingPoint08 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint09 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint1 |
Direct fit for the 1979-1993 Ford Mustang 5.0L |
| SellingPoint10 |
Mishimoto Lifetime Warranty |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint3 |
Features a three-row, 2.05-in thick, efficient brazed aluminum core |
| SellingPoint4 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint5 |
Perfect for use on the street and strip |
| SellingPoint6 |
Efficient temperature regulation for both stock and modified vehicles |
| SellingPoint7 |
Unique dual pass design is precision engineered to provide substantial heat transfer |
| SellingPoint8 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint9 |
Includes Magnetic Drain |
| TechSpec Applications |
1979-1993 Ford Mustang (All)--1980-1988 Ford Thunderbird--1980-1983 Ford Fairmont--1981-1982 Ford Granada--1983-1986 Ford LTD--1978-1983 Mercury Zephyr--1980-1986 Mercury Capri--1980-1988 Mercury Cougar |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Height (in) |
16.7 |
| TechSpec Core Length (in) |
24.45 |
| TechSpec Core Thickness (in) |
2.05 |
| TechSpec DPI |
138/556 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
302ci (5.0L) |
| TechSpec Fluid Capacity (gal) |
3.97 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.25 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit--Custom lower hose is required due to the relocated lower hose port |
| TechSpec Outlet (in) |
1.5 |
| TechSpec Overall Height (in) |
19.1 |
| TechSpec Overall Length (in) |
30 |
| TechSpec Overall Width (in) |
4.25 |
| TechSpec Overall Width (ins) |
4.25 |
| TechSpec Rows |
3 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354803143 |
