Performance Aluminum Radiator fits Mazda Miata 1990-1997
By replacing your current Miata radiator with a Mishimoto performance aluminum radiator you will undoubtedly notice a cooler more efficient running engine.All Mishimoto Mazda Miata performance aluminum radiators are designed and engineered to maximize cooling efficiency, protect your car from the overheating, and boost overall engine functions.With its lightweight dual core, 100-percent brazed aluminum, and polished tank ends installing a direct OEM fit Mishimoto radiator is effortless, no cutting or modification is required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty.Check out the Mazda Miata hose kit, for even greater cooling efficiency.
- Direct fit for the 1990-1997 Mazda Miata 1.6L/1.8L
- Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.97 thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
- Ideal replacement for the failure-prone stock radiator
- Perfect for use on the street, track, or autocross course

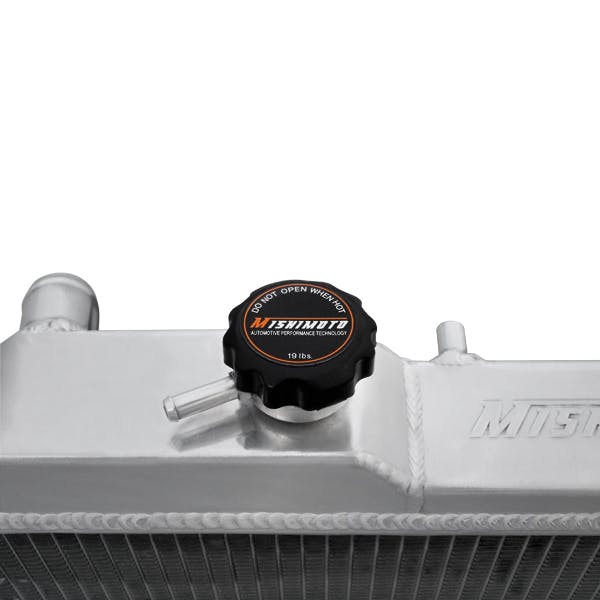

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain
Information:
Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 1990-1997 |
Mazda Miata |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
12.6 |
| Core Length |
25.12 |
| Core Material |
Aluminum |
| Core Thickness |
1.97 |
| Country of Origin (Primary) |
CN |
| Dimensions |
27.8in x 18in x 2.55in |
| Down Flow Or Cross Flow Type |
Down Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
1.79 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.25 |
| Inlet Location |
Top Right |
| Install Difficulty |
4 |
| Installation Difficulty |
4 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.25 |
| Outlet Location |
Bottom Left |
| Overall Height |
18 |
| Overall Length |
27.8 |
| Overall Width |
2.55 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 1990-1997 Mazda Miata 1.6L/1.8L |
| SellingPoint02 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint03 |
Features a two-row, 1.97-in thick, efficient brazed aluminum core |
| SellingPoint04 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint05 |
Ideal replacement for the failure-prone stock radiator |
| SellingPoint06 |
Perfect for use on the street, track, or autocross course |
| SellingPoint07 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint08 |
Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance |
| SellingPoint09 |
Mishimoto Lifetime Warranty |
| SellingPoint1 |
Direct fit for the 1990-1997 Mazda Miata 1.6L/1.8L |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint3 |
Features a two-row, 1.97-in thick, efficient brazed aluminum core |
| SellingPoint4 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint5 |
Ideal replacement for the failure-prone stock radiator |
| SellingPoint6 |
Perfect for use on the street, track, or autocross course |
| SellingPoint7 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint8 |
Includes Magnetic Drain |
| SellingPoint9 |
Plug to capture any metallic debris/fragments in your cooling system |
| TechSpec Applications |
N/A |
| TechSpec Chassis Codes |
NA6(8)C |
| TechSpec Core Height (in) |
12.6 |
| TechSpec Core Length (in) |
25.12 |
| TechSpec Core Thickness (in) |
1.97 |
| TechSpec DPI |
1140 |
| TechSpec Drain Plug Thread Size |
M10x1.25 |
| TechSpec Engine Codes |
N/A |
| TechSpec Fluid Capacity (gal) |
1.79 |
| TechSpec Includes |
Mishimoto Radiator--Magnetic Drain Plug--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.25 |
| TechSpec Material |
N/A |
| TechSpec Note |
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit. |
| TechSpec Outlet (in) |
1.25 |
| TechSpec Overall Height (in) |
18 |
| TechSpec Overall Length (in) |
27.8 |
| TechSpec Overall Width (in) |
2.55 |
| TechSpec Overall Width (ins) |
2.55 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354797770 |
