3-Row Performance Aluminum Radiator, fits Toyota Land Cruiser FJ40 1958-1984
If you're looking to upgrade your Toyota FJ40 parts, look no further! The Mishimoto 1958--1984 Toyota Land Cruiser FJ40 radiator is an ideal upgrade for the brittle stock radiator, and provides your Cruiser with enhanced reliability and improved cooling efficiency. The Mishimoto FJ40 radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This Land Cruiser radiator also includes a Magnetic Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with every Mishimoto aluminum radiator, this FJ40 radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
- All-aluminum construction with durable, TIG-welded end tanks
- Features an internal transmission cooler to provide optimal fluid temperatures for automatic trans
- 3-row core
- Increased coolant capacity and superior heat dissipation
- Billet aluminum fill neck
- Brazed aluminum core
- Includes magnetic drain plug to capture metallic debris and fragments in cooling system
- Mishimoto Lifetime Warranty
Information:
Toyota Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 1975-1984 |
Toyota Land Cruiser |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color |
Silver |
| Core Height |
17.1 |
| Core Length |
19.4 |
| Core Material |
Aluminum |
| Core Thickness |
2 |
| Country of Origin (Primary) |
CN |
| Down Flow Or Cross Flow Type |
Down Flow |
| Drain Plug Included |
Yes |
| Feature Bullet 1 |
All-aluminum construction with durable, TIG-welded end tanks |
| Feature Bullet 2 |
Features an internal transmission cooler to provide optimal fluid temperatures for automatic trans |
| Feature Bullet 3 |
3-row core |
| Feature Bullet 4 |
Increased coolant capacity and superior heat dissipation |
| Feature Bullet 5 |
Billet aluminum fill neck |
| Finish |
Polished |
| Fluid Capacity |
4.99 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.5 |
| Inlet Location |
Top Left |
| Install Difficulty |
N/A |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.5 |
| Outlet Location |
Bottom Right |
| Overall Height |
20 |
| Overall Length |
22.75 |
| Overall Width |
5.1 |

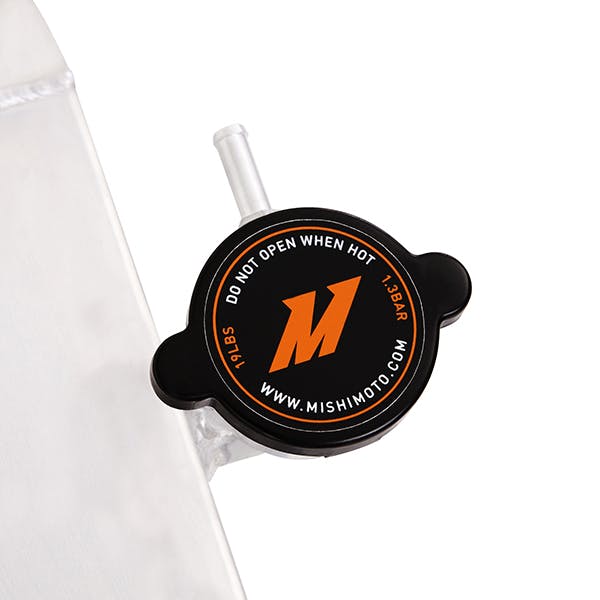

| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
All-aluminum construction with durable, TIG-welded end tanks |
| SellingPoint02 |
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions |
| SellingPoint03 |
3-row core |
| SellingPoint04 |
Increased coolant capacity and superior heat dissipation |
| SellingPoint05 |
Billet aluminum fill neck |
| SellingPoint06 |
Brazed aluminum core |
| SellingPoint07 |
Includes magnetic drain plug to capture metallic debris and fragments in cooling system |
| SellingPoint08 |
Mishimoto Lifetime Warranty |
| SellingPoint09 |
N/A |
| SellingPoint1 |
All-aluminum construction with durable, TIG-welded end tanks |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions |
| SellingPoint3 |
3-row core |
| SellingPoint4 |
Increased coolant capacity and superior heat dissipation |
| SellingPoint5 |
Billet aluminum fill neck |
| SellingPoint6 |
Brazed aluminum core |
| SellingPoint7 |
Includes magnetic drain plug to capture metallic debris and fragments in cooling system |
| SellingPoint8 |
Mishimoto Lifetime Warranty |
| SellingPoint9 |
N/A |
| TechSpec Applications |
1958-1984 Toyota Land Cruiser FJ40 (3.9L V6, 4.2L V6)--1958-1980 Toyota Land Cruiser (3.9L V6, 4.2L V6) |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Height (in) |
17.1 |
| TechSpec Core Length (in) |
19.4 |
| TechSpec Core Thickness (in) |
2 |
| TechSpec DPI |
180 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
(3.9L) V6--(4.2L) V6 |
| TechSpec Fluid Capacity (gal) |
4.99 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.5 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch BSPP |
| TechSpec Outlet (in) |
1.5 |
| TechSpec Overall Height (in) |
20 |
| TechSpec Overall Length (in) |
22.75 |
| TechSpec Overall Width (in) |
5.1 |
| TechSpec Overall Width (ins) |
5.1 |
| TechSpec Rows |
3 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
Yes |
| GTIN |
00748354020748 |
