Performance Aluminum Radiator, fits Hyundai Genesis Coupe 2.0T 2010-2012
by replacing your current 2010-2012 Hyundai Genesis Coupe 2.0T radiator with a top of the line Mishimoto performance aluminum radiator you will undoubtedly notice a cooler, more efficient running engine.The new application is specifically designed and engineered as a direct OEM fit with no modification required for easy installation.
- Direct fit for the 2010-2012 Hyundai Genesis Coupe 2.0T
- Full aluminum construction with durable, TIG-welded end tanks
- Functions with both stock and aftermarket front-mount intercoolers
- Features a two-row, 1.97 thick, efficient brazed aluminum core
- Increased fluid capacity and superior heat dissipation
- Provides optimal heat exchange for both stock and highly modified vehicles

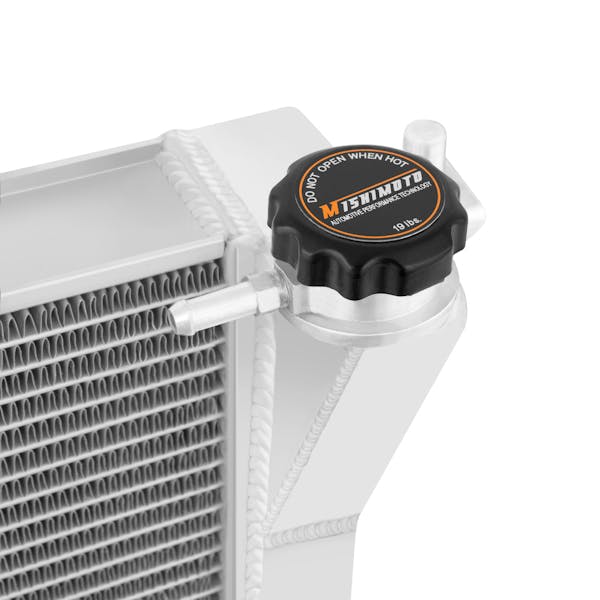

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
Information:
Hyundai Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 2010-2012 |
Hyundai Genesis Coupe |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
12.5 |
| Core Length |
25.5 |
| Core Material |
Aluminum |
| Core Thickness |
1.97 |
| Country of Origin (Primary) |
CN |
| Dimensions |
32.48in x 17.8in x 2.47in |
| Down Flow Or Cross Flow Type |
Cross Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
1.64 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.4 |
| Inlet Location |
Top Left |
| Install Difficulty |
4 |
| Installation Difficulty |
4 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.4 |
| Outlet Location |
Bottom Right |
| Overall Height |
32.48 |
| Overall Length |
17.8 |
| Overall Width |
2.47 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 2010-2012 Hyundai Genesis Coupe 2.0T |
| SellingPoint02 |
Full aluminum construction with durable, TIG-welded end tanks |
| SellingPoint03 |
Functions with both stock and aftermarket front-mount intercoolers |
| SellingPoint04 |
Features a two-row, 1.97-in thick, efficient brazed aluminum core |
| SellingPoint05 |
Increased fluid capacity and superior heat dissipation |
| SellingPoint06 |
Provides optimal heat exchange for both stock and highly modified vehicles |
| SellingPoint07 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint08 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint09 |
Mishimoto Lifetime Warranty |
| SellingPoint1 |
Direct fit for the 2010-2012 Hyundai Genesis Coupe 2.0T |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction with durable, TIG-welded end tanks |
| SellingPoint3 |
Functions with both stock and aftermarket front-mount intercoolers |
| SellingPoint4 |
Features a two-row, 1.97-in thick, efficient brazed aluminum core |
| SellingPoint5 |
Increased fluid capacity and superior heat dissipation |
| SellingPoint6 |
Provides optimal heat exchange for both stock and highly modified vehicles |
| SellingPoint7 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint8 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint9 |
Mishimoto Lifetime Warranty |
| TechSpec Applications |
2010-2012 Hyundai Genesis Coupe 2.0T |
| TechSpec Chassis Codes |
BK |
| TechSpec Core Height (in) |
12.5 |
| TechSpec Core Length (in) |
25.5 |
| TechSpec Core Thickness (in) |
1.97 |
| TechSpec DPI |
13120 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
N/A |
| TechSpec Fluid Capacity (gal) |
1.64 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.4 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto transmission cooler (P/N: MMTC-U) |
| TechSpec Outlet (in) |
1.4 |
| TechSpec Overall Height (in) |
32.48 |
| TechSpec Overall Length (in) |
17.8 |
| TechSpec Overall Width (in) |
2.47 |
| TechSpec Overall Width (ins) |
2.47 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354803495 |
