Performance Aluminum Radiator, fits Subaru Impreza 2.2L 1993-2001
An ideal upgrade to the stock OEM radiator, the Mishimoto Subaru Impreza aluminum radiator will give your vehicle a cooler, more efficient running engine. Most people overlook the importance of installing an upgraded radiator in their engine. Not only will it produce 30-percent greater cooling capacity, but will also boost engine functions and prevent your car from overheating. All Mishimoto performance radiators are made with durable aircraft-quality aluminum, feature a dual core, and polished end tanks. By replacing your stock Impreza GC8 radiator you will notice a cooler, more efficient running engine. Mishimoto can solve your cooling problems with our durable, efficient aluminum radiator. Note: This radiator will only fit non-turbo models.
- Direct fit for the 1993-1998 Subaru Impreza GC8

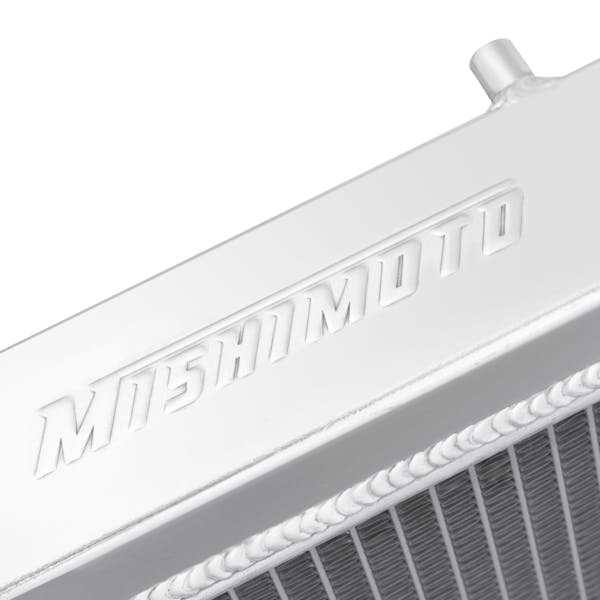

- Full aluminum construction with durable, TIG-welded end tanks
- Features a two-row, 2.05 thick, efficient brazed aluminum core
- Increased fluid capacity and superior heat dissipation
- Perfect upgrade to the stock, failure prone plastic end tank radiator

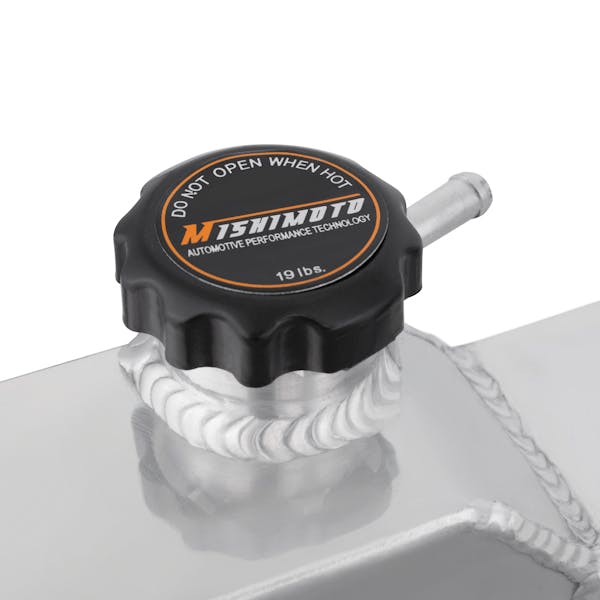

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

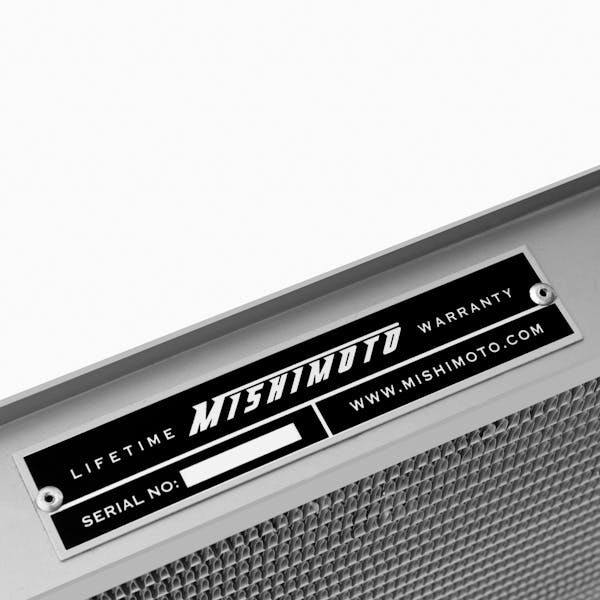

- Mishimoto Lifetime Warranty
Information:
Subaru Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 1993-1998 |
Subaru Impreza |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
27.08 |
| Core Length |
13.35 |
| Core Material |
Aluminum |
| Core Thickness |
2.05 |
| Country of Origin (Primary) |
CN |
| Dimensions |
28.2in x 19.3in x 2.55in |
| Down Flow Or Cross Flow Type |
Down Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
1.73 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.5 |
| Inlet Location |
Top Right |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.5 |
| Outlet Location |
Bottom Left |
| Overall Height |
28.2 |
| Overall Length |
19.3 |
| Overall Width |
2.55 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 1993-1998 Subaru Impreza GC8 |
| SellingPoint02 |
Full aluminum construction with durable, TIG-welded end tanks |
| SellingPoint03 |
Features a two-row, 2.05-in thick, efficient brazed aluminum core |
| SellingPoint04 |
Increased fluid capacity and superior heat dissipation |
| SellingPoint05 |
Perfect upgrade to the stock, failure prone plastic end tank radiator |
| SellingPoint06 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint07 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint08 |
Mishimoto Lifetime Warranty |
| SellingPoint09 |
N/A |
| SellingPoint1 |
Direct fit for the 1993-1998 Subaru Impreza GC8 |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction with durable, TIG-welded end tanks |
| SellingPoint3 |
Features a two-row, 2.05-in thick, efficient brazed aluminum core |
| SellingPoint4 |
Increased fluid capacity and superior heat dissipation |
| SellingPoint5 |
Perfect upgrade to the stock, failure prone plastic end tank radiator |
| SellingPoint6 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint7 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint8 |
Mishimoto Lifetime Warranty |
| SellingPoint9 |
N/A |
| TechSpec Applications |
1993-1998 Subaru Impreza--1993 Subaru Impreza 4X4--1996-1997 Subaru Impreza Brighton--1993-1997 Subaru Impreza L--1995 Subaru Impreza L 4X4--1993-1994 Subaru Impreza LS--1995-1996 Subaru Impreza LX--1995-1998 Subaru Impreza Outback |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Height (in) |
27.08 |
| TechSpec Core Length (in) |
13.35 |
| TechSpec Core Thickness (in) |
2.05 |
| TechSpec DPI |
1574 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
N/A |
| TechSpec Fluid Capacity (gal) |
1.73 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.5 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
Vertical flow radiators only----This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.----This radiator is only compatible with 2.2L motors. Will only fit non-turbo models. |
| TechSpec Outlet (in) |
1.5 |
| TechSpec Overall Height (in) |
28.2 |
| TechSpec Overall Length (in) |
19.3 |
| TechSpec Overall Width (in) |
2.55 |
| TechSpec Overall Width (ins) |
2.55 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354799965 |
