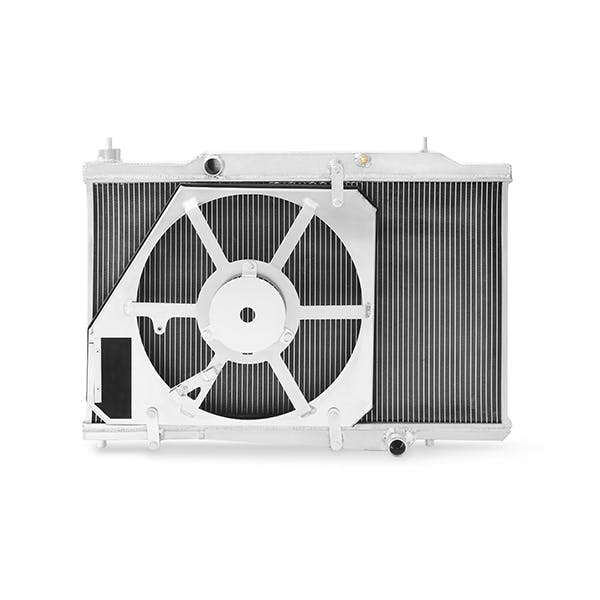

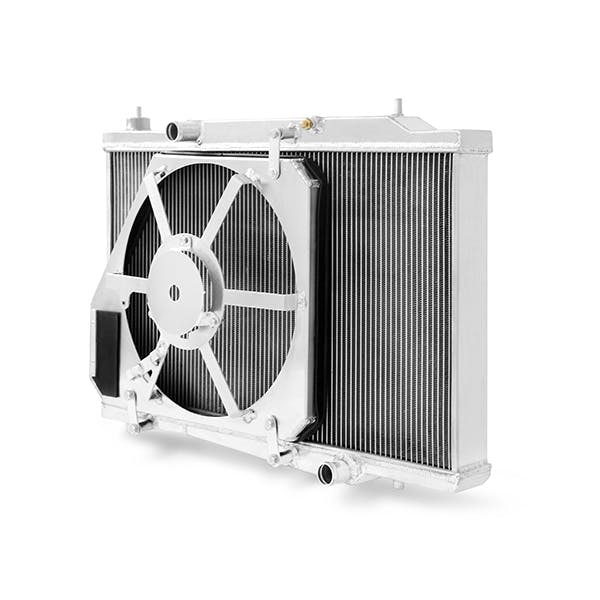

Radiator and Fan Shroud Kit, fits Ford Fiesta ST 2014-2019
The 2014-2017 Fiesta ST is a fantastic choice of car for the track or autocross, but it can suffer from some cooling deficiencies. It's hard to win a race if you have to hit the pits after only a couple laps. Constructed of 100-percent aluminum and featuring a 3-row core, this 2014-2017 Fiesta ST radiator is the ultimate in cooling efficiency. This Mishimoto 2014-2017 Fiesta ST radiator will make sure your Fiesta is running cool, lap after lap. The radiator core measures in at a massive 52mm thick, requiring our engineers to get creative with the fitment of the fan and shroud. Unlike other Mishimoto radiators, this 2014-2017 Fiesta ST radiator includes a Mishimoto compact fan shroud for increased airflow through the radiator. This compact fan shroud retains the use of the stock electric fans, and was stringently tested to ensure that the airflow remained intact for performance applications. Testing during steady-state driving yielded coolant temperature drops of 10 F (5.5 C) when compared to the stock 2014-2017 Fiesta ST radiator and fan shroud. Like the rest of the Mishimoto lineup of 2014-2017 Fiesta ST parts, this radiator comes with the Mishimoto Lifetime Warranty, to ensure superior quality and craftsmanship.
- Direct-fit for the 2014-2019 Ford Fiesta ST
- Reduces coolant temperatures by 10 F (5.5 C) during steady state driving

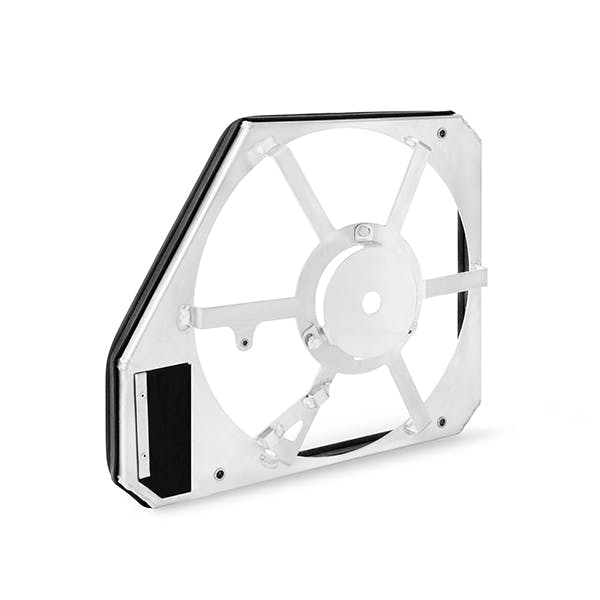

- Includes Mishimoto compact fan shroud for increased air passage through the radiator
- Includes installed air bleed screw for quick evacuation of air pockets in the system
- No cutting or fabrication necessary
- 3-row, 2? thick brazed aluminum core with TIG-welded end tanks
- Fully compatible with stock hoses and Mishimoto Fiesta ST radiator hoses
- Compatible with most intercooler and intercooler piping kits
- Mishimoto Lifetime Warranty
Information:
Shroud Assembly
Application Summary:
| Year |
Make/Model |
| 2014-2017 |
Ford Fiesta |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color |
Silver |
| Core Height |
14.4 |
| Core Length |
24.68 |
| Core Material |
Aluminum |
| Core Thickness |
2.04 |
| Country of Origin (Primary) |
CN |
| Down Flow Or Cross Flow Type |
Down Flow |
| Drain Plug Included |
Yes |
| Feature Bullet 1 |
Direct-fit for the 2014+ Ford Fiesta ST |
| Feature Bullet 2 |
Reduces coolant temperatures by 10 F (5.5 C) during steady state driving |
| Feature Bullet 3 |
Includes Mishimoto compact fan shroud for increased air passage through the radiator |
| Feature Bullet 4 |
Includes installed air bleed screw for quick evacuation of air pockets in the system |
| Feature Bullet 5 |
No cutting or fabrication necessary |
| Finish |
Polished |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.1 |
| Inlet Location |
Top Left |
| Install Difficulty |
5 |
| Installation Difficulty |
5 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.1 |
| Outlet Location |
Bottom Right |
| Overall Height |
25.67 |
| Overall Length |
19.25 |
| Overall Width |
5.67 |
| Radiator Cap Included |
No |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct-fit for the 2014-2019 Ford Fiesta ST |
| SellingPoint02 |
Reduces coolant temperatures by 10F (5.5C) during steady state driving |
| SellingPoint03 |
Includes Mishimoto compact fan shroud for increased air passage through the radiator |
| SellingPoint04 |
Includes installed air bleed screw for quick evacuation of air pockets in the system |
| SellingPoint05 |
No cutting or fabrication necessary |
| SellingPoint06 |
3-row, 2-in thick brazed aluminum core with TIG-welded end tanks |
| SellingPoint07 |
Fully compatible with stock hoses and Mishimoto Fiesta ST radiator hoses |
| SellingPoint08 |
Compatible with most intercooler and intercooler piping kits |
| SellingPoint09 |
Mishimoto Lifetime Warranty |
| SellingPoint1 |
Direct-fit for the 2014-2019 Ford Fiesta ST |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Reduces coolant temperatures by 10F (5.5C) during steady state driving |
| SellingPoint3 |
Includes Mishimoto compact fan shroud for increased air passage through the radiator |
| SellingPoint4 |
Includes installed air bleed screw for quick evacuation of air pockets in the system |
| SellingPoint5 |
No cutting or fabrication necessary |
| SellingPoint6 |
3-row, 2-in thick brazed aluminum core with TIG-welded end tanks |
| SellingPoint7 |
Fully compatible with stock hoses and Mishimoto Fiesta ST radiator hoses |
| SellingPoint8 |
Compatible with most intercooler and intercooler piping kits |
| SellingPoint9 |
Mishimoto Lifetime Warranty |
| TechSpec Applications |
2014-2019 Ford Fiesta ST |
| TechSpec Chassis Codes |
B3 |
| TechSpec Core Height (in) |
14.4 |
| TechSpec Core Length (in) |
24.68 |
| TechSpec Core Thickness (in) |
2.04 |
| TechSpec DPI |
N/A |
| TechSpec Drain Plug Thread Size |
N/A |
| TechSpec Engine Codes |
N/A |
| TechSpec Fluid Capacity (gal) |
N/A |
| TechSpec Includes |
Mishimoto Radiator-- Aluminum Fan Shroud--Mounting Hardware--Installed Rubber Trim Seal--Lifetime Warranty |
| TechSpec Inlet (in) |
1.1 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
N/A |
| TechSpec Outlet (in) |
1.1 |
| TechSpec Overall Height (in) |
25.67 |
| TechSpec Overall Length (in) |
19.25 |
| TechSpec Overall Width (in) |
5.67 |
| TechSpec Overall Width (ins) |
5.67 |
| TechSpec Rows |
3 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354026450 |
