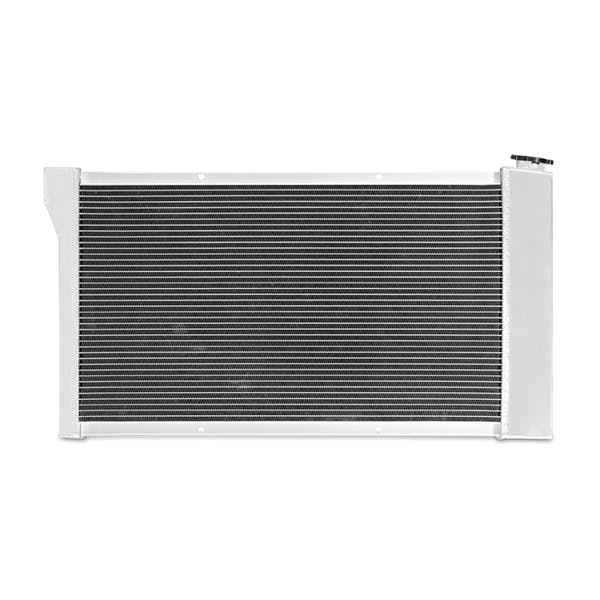

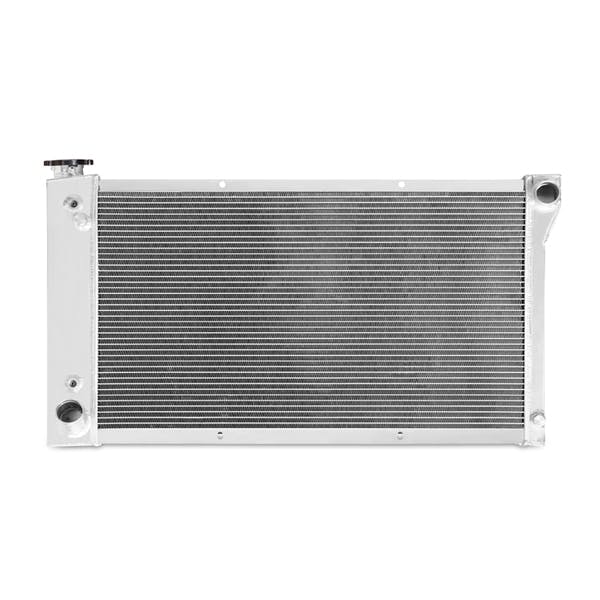

3-Row Performance Aluminum Radiator, fits Chevrolet/GM C/K Truck 1967-1972
An ideal upgrade for the brittle stock radiator, the Mishimoto 1967--1972 GM C/K Truck X-Line Performance Aluminum Radiator provides your truck with enhanced reliability and improved cooling efficiency. Whether you use your classic for daily driving or take it to the track, don't overlook the importance of installing an upgraded classic truck radiator in your engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. This GM C/K truck radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This classic car radiator also includes a magnetic oil drain plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, every GM C/K truck radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
- All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
- 3-row brazed aluminum core with TIG-welded end tanks
- Increased coolant capacity and optimal heat dissipation
- Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
- Billet aluminum fill neck
- Includes magnetic drain plug to capture metallic debris and fragments in your cooling system
- Mishimoto Lifetime Warranty
Information:
Chevrolet Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 1969-1972 |
Chevrolet Blazer |
| 1967-1972 |
Chevrolet C10 Suburban |
| 1967-1972 |
Chevrolet C20 Suburban |
| 1967-1972 |
Chevrolet G20 Van |
| 1967-1972 |
Chevrolet K10 Suburban |
| 1967-1972 |
Chevrolet K20 Suburban |
| 1975-1979 |
Chevrolet P10 |
| 1975-1979 |
Chevrolet P20 |
| 1975-1979 |
Chevrolet P30 |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color |
Silver |
| Core Height |
16.1 |
| Core Length |
28.3 |
| Core Material |
Aluminum |
| Core Thickness |
2.5 |
| Country of Origin (Primary) |
CN |
| Down Flow Or Cross Flow Type |
Cross Flow |
| Drain Plug Included |
Yes |
| Finish |
Polished |
| Fluid Capacity |
4.87 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.5 |
| Inlet Location |
Top Left |
| Install Difficulty |
N/A |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.75 |
| Outlet Location |
Bottom Right |
| Overall Height |
34.1 |
| Overall Length |
19.3 |
| Overall Width |
6.5 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity |
| SellingPoint02 |
3-row brazed aluminum core with TIG-welded end tanks |
| SellingPoint03 |
Increased coolant capacity and optimal heat dissipation |
| SellingPoint04 |
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions |
| SellingPoint05 |
Billet aluminum fill neck |
| SellingPoint06 |
Includes magnetic drain plug to capture metallic debris and fragments in your cooling system |
| SellingPoint07 |
Mishimoto Lifetime Warranty |
| SellingPoint08 |
N/A |
| SellingPoint09 |
N/A |
| SellingPoint1 |
All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
3-row brazed aluminum core with TIG-welded end tanks |
| SellingPoint3 |
Increased coolant capacity and optimal heat dissipation |
| SellingPoint4 |
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions |
| SellingPoint5 |
Billet aluminum fill neck |
| SellingPoint6 |
Includes magnetic drain plug to capture metallic debris and fragments in your cooling system |
| SellingPoint7 |
Mishimoto Lifetime Warranty |
| SellingPoint8 |
N/A |
| SellingPoint9 |
N/A |
| TechSpec Applications |
1967-1972 GM C/K Pickup 250 ci (4.1L) L6, 283ci (4.6L) V8, 292ci (4.8L) L6, 307ci (5.0L) V8, 327ci (5.4L) V8, 350ci (5.7L) V8, 396ci (6.5L) V8, 402ci (6.6L) V8--1969-1972 Chevy Blazer/GMC Jimmy 250ci (4.1L) L6, 292 (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V81967-1971 GM G Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8--1968-1979 GM P Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8, 402ci (6.6L) V8 |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Height (in) |
16.1 |
| TechSpec Core Length (in) |
28.3 |
| TechSpec Core Thickness (in) |
2.5 |
| TechSpec DPI |
369 |
| TechSpec Drain Plug Thread Size |
1/4-18 NPT |
| TechSpec Engine Codes |
250ci (4.1L) L6--292ci (4.8L) L6--283ci (4.6L) V8--307ci (5.0L) V8--327ci (5.4L) V8--350ci (5.7L) V8--402ci (6.6L) V8 |
| TechSpec Fluid Capacity (gal) |
4.87 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.5 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
N/A |
| TechSpec Outlet (in) |
1.75 |
| TechSpec Overall Height (in) |
34.1 |
| TechSpec Overall Length (in) |
19.3 |
| TechSpec Overall Width (in) |
6.5 |
| TechSpec Overall Width (ins) |
6.5 |
| TechSpec Rows |
3 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
Yes |
| GTIN |
00748354016116 |
