Performance Aluminum Radiator, fits Honda Civic SI 2002-2005
A Mishimoto performance aluminum radiator is the ideal upgrade to the stock Civic radiator. For a cooler more efficient running engine, all Mishimoto radiators are designed and engineered to maximize cooling, boost engine functions, and most importantly prevent your car from overheating. Made with 100-percent brazed aluminum and polished end tanks, this lightweight dual core radiator will enhance the overall performance and lifetime of your engine. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and are backed with limited lifetime warranty. Fits USDM EP3 Civic SI (2002-2005) Fits UKDM EP3 Civic Type R (2002-2005)
- Direct fit for the 2002-2005 Honda Civic Si w/ K20 engine

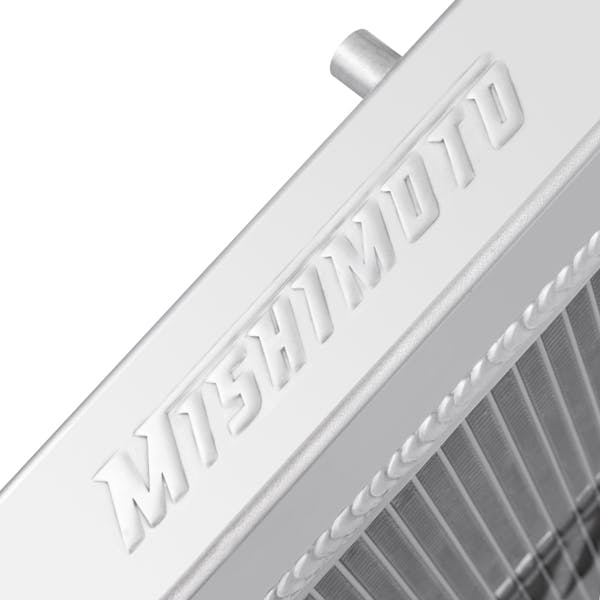

- Full aluminum construction with durable TIG-welded end tanks
- Features a two-row, 1.42 thick brazed aluminum core which provides efficient fluid temperature regulation on the street and track

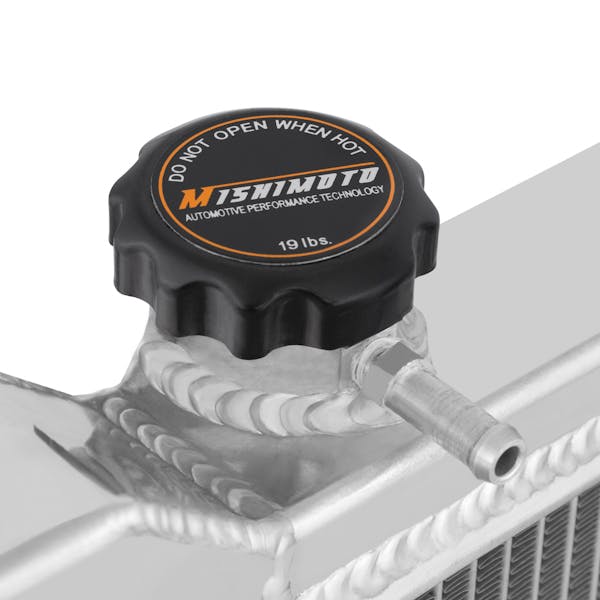

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Polished end tanks improve engine bay aesthetics
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

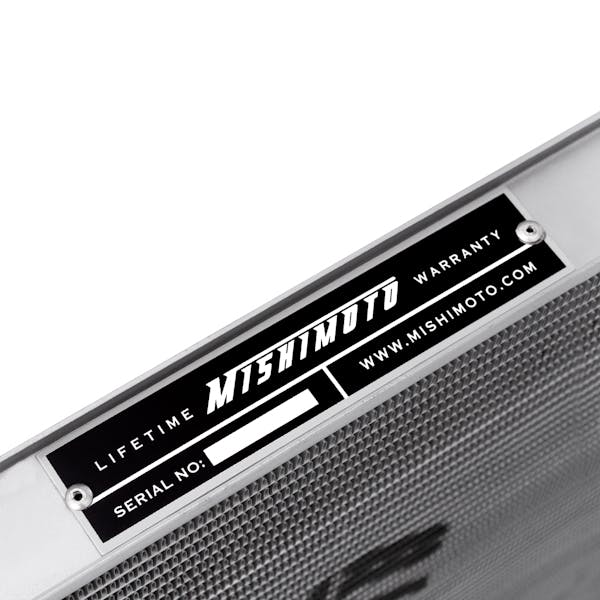

- Mishimoto Lifetime Warranty
Information:
Honda Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 2002-2005 |
Honda Civic |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
26.23 |
| Core Length |
13.78 |
| Core Material |
Aluminum |
| Core Thickness |
1.42 |
| Country of Origin (Primary) |
CN |
| Dimensions |
17.95in 26.93in 1.92in |
| Down Flow Or Cross Flow Type |
Down Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
1.58 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.26 |
| Inlet Location |
Top Left |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.26 |
| Outlet Location |
Bottom Right |
| Overall Height |
17.95 |
| Overall Length |
26.93 |
| Overall Width |
1.92 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 2002-2005 Honda Civic Si w/ K20 engine |
| SellingPoint02 |
Full aluminum construction with durable TIG-welded end tanks |
| SellingPoint03 |
Features a two-row, 1.42-in thick brazed aluminum core which provides efficient fluid temperature regulation on the street and track |
| SellingPoint04 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint05 |
Polished end tanks improve engine bay aesthetics |
| SellingPoint06 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint07 |
Mishimoto Lifetime Warranty |
| SellingPoint08 |
N/A |
| SellingPoint09 |
N/A |
| SellingPoint1 |
Direct fit for the 2002-2005 Honda Civic Si w/ K20 engine |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction with durable TIG-welded end tanks |
| SellingPoint3 |
Features a two-row, 1.42-in thick brazed aluminum core which provides efficient fluid temperature regulation on the street and track |
| SellingPoint4 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint5 |
Polished end tanks improve engine bay aesthetics |
| SellingPoint6 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint7 |
Mishimoto Lifetime Warranty |
| SellingPoint8 |
N/A |
| SellingPoint9 |
N/A |
| TechSpec Applications |
2002-2005 UKDM EP3 Civic Type R |
| TechSpec Chassis Codes |
EP3 |
| TechSpec Core Height (in) |
26.23 |
| TechSpec Core Length (in) |
13.78 |
| TechSpec Core Thickness (in) |
1.42 |
| TechSpec DPI |
2574 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
K20a3 |
| TechSpec Fluid Capacity (gal) |
1.58 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.26 |
| TechSpec Material |
N/A |
| TechSpec Note |
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit. |
| TechSpec Outlet (in) |
1.26 |
| TechSpec Overall Height (in) |
17.95 |
| TechSpec Overall Length (in) |
26.93 |
| TechSpec Overall Width (in) |
1.92 |
| TechSpec Overall Width (ins) |
1.92 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354803303 |
