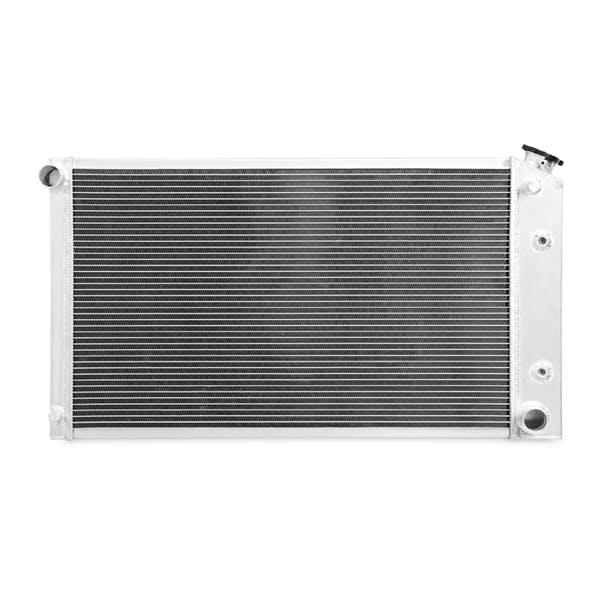

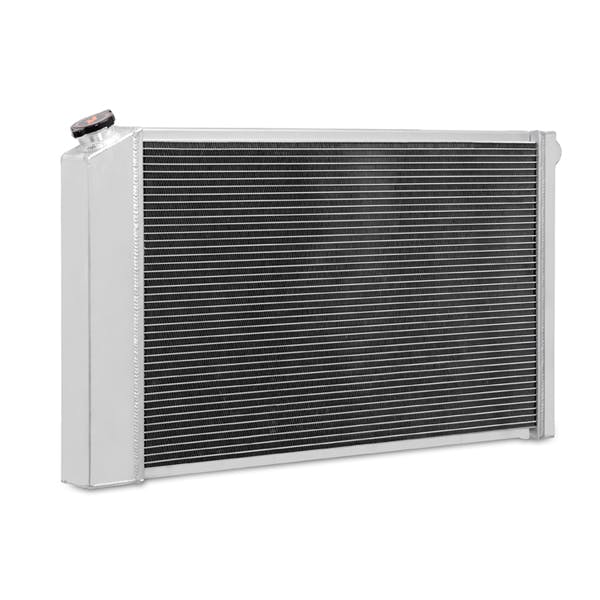

3-Row Performance Aluminum Radiator, fits Chevrolet Chevelle 1968-1972
An ideal upgrade for the brittle stock radiator, the Mishimoto 1968-72 Chevrolet Chevelle X-Line Performance Aluminum Radiator provides your car with enhanced reliability and improved cooling efficiency. Whether you use your classic for daily driving or take it to the track, many people overlook the importance of installing an upgraded radiator in their engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. The Mishimoto Chevrolet Chevelle X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This performance radiator also includes a Magnetic Oil Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
- 100% aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
- 3-row brazed aluminum core with TIG-welded end tanks
- Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
- Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
- Billet aluminum fill neck
- Includes magnetic drain plug
- Mishimoto Lifetime Warranty
Information:
Chevrolet C10 Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 1981-1986 |
Chevrolet C10 |
| 1981-1986 |
Chevrolet C10 Suburban |
| 1981-1986 |
Chevrolet C20 |
| 1981-1986 |
Chevrolet C20 Suburban |
| 1981-1986 |
Chevrolet C30 |
| 1968 |
Chevrolet Chevelle |
| 1970-1972 |
Chevrolet Chevelle |
| 1975-1977 |
Chevrolet El Camino |
| 1975-1977 |
Chevrolet Monte Carlo |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color |
Silver |
| Core Height |
16.9 |
| Core Length |
28.2 |
| Core Material |
Aluminum |
| Core Thickness |
2.2 |
| Country of Origin (Primary) |
CN |
| Down Flow Or Cross Flow Type |
Cross Flow |
| Drain Plug Included |
Yes |
| Finish |
Polished |
| Fluid Capacity |
4.42 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.5 |
| Inlet Location |
Top Left |
| Install Difficulty |
N/A |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.6 |
| Outlet Location |
Bottom Right |
| Overall Height |
33.7 |
| Overall Length |
18.9 |
| Overall Width |
4.6 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
100-percent aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity |
| SellingPoint02 |
3-row brazed aluminum core with TIG-welded end tanks |
| SellingPoint03 |
Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures |
| SellingPoint04 |
Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions |
| SellingPoint05 |
Billet aluminum fill neck |
| SellingPoint06 |
Includes magnetic drain plug |
| SellingPoint07 |
Mishimoto Lifetime Warranty |
| SellingPoint08 |
N/A |
| SellingPoint09 |
N/A |
| SellingPoint1 |
100-percent aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
3-row brazed aluminum core with TIG-welded end tanks |
| SellingPoint3 |
Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures |
| SellingPoint4 |
Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions |
| SellingPoint5 |
Billet aluminum fill neck |
| SellingPoint6 |
Includes magnetic drain plug |
| SellingPoint7 |
Mishimoto Lifetime Warranty |
| SellingPoint8 |
N/A |
| SellingPoint9 |
N/A |
| TechSpec Applications |
1968-1973 Chevy Chevelle 307ci (5.0L) V8, 350ci (5.7L) V8--1970-1977 Chevy Monte Carlo 305ci (5.0L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8--1968-1977 Chevy El Camino 250ci (4.1L) L6, 307ci (5.0L) V8, 327ci (5.3L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8, 454ci (7.4L) V8--1973-1986 Chevy, GMC C, K Series 250ci (4.1L) L6, 292ci (4.8L) L6, 305ci (5.0L) V8, 350ci (5.7L) V8 |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Height (in) |
16.9 |
| TechSpec Core Length (in) |
28.2 |
| TechSpec Core Thickness (in) |
2.2 |
| TechSpec DPI |
161 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
250ci (4.1L) L6--292ci (4.8L) L6--305ci (5.0L) V8--307ci (5.0L) V8--327ci (5.4L) V8--350ci (5.7L) V8--400ci (6.6L) V8--454ci (7.4L) V8 |
| TechSpec Fluid Capacity (gal) |
4.42 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.5 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
Transmission cooler fitting size: 1/4-inch BSPP |
| TechSpec Outlet (in) |
1.6 |
| TechSpec Overall Height (in) |
33.7 |
| TechSpec Overall Length (in) |
18.9 |
| TechSpec Overall Width (in) |
4.6 |
| TechSpec Overall Width (ins) |
4.6 |
| TechSpec Rows |
3 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
Yes |
| GTIN |
00748354016062 |
