3-Row Performance Aluminum Radiator w/ 22-in Core, fits Plymouth Barracuda Small Block 1970-1973
If you're looking to upgrade your Dodge Charger parts, look no further! The Mishimoto 1970--1972 Dodge Charger Small Block X-Line Performance Aluminum Radiator provides your car with enhanced reliability and improved cooling efficiency. Whether you use your classic for daily driving or take it to the track, many people overlook the importance of installing an upgraded radiator in their engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. The Mishimoto Dodge Charger Small Block X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This Dodge Charger performance radiator also includes a Magnetic Oil Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, Dodge Charger this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
- All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
- 3-row core
- Increased coolant capacity and optimal heat dissipation
- Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
- Billet aluminum fill neck
- Brazed aluminum core with TIG-welded end tanks
- Includes magnetic drain plug to capture metallic debris and fragments in your cooling system
- Mishimoto Lifetime Warranty
Information:
Dodge Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 1970-1971 |
Dodge Challenger |
| 1970-1972 |
Dodge Charger |
| 1970-1973 |
Dodge Coronet |
| 1970-1973 |
Plymouth Barracuda |
| 1972-1973 |
Plymouth Road Runner |
| 1971-1973 |
Plymouth Satellite |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color |
Silver |
| Core Height |
15.9 |
| Core Length |
22.1 |
| Core Material |
Aluminum |
| Core Thickness |
2.5 |
| Country of Origin (Primary) |
CN |
| Down Flow Or Cross Flow Type |
Down Flow |
| Drain Plug Included |
Yes |
| Finish |
Polished |
| Fluid Capacity |
5.07 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.5 |
| Inlet Location |
Top Left |
| Install Difficulty |
N/A |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.75 |
| Outlet Location |
Bottom Right |
| Overall Height |
25.7 |
| Overall Length |
21.3 |
| Overall Width |
5 |

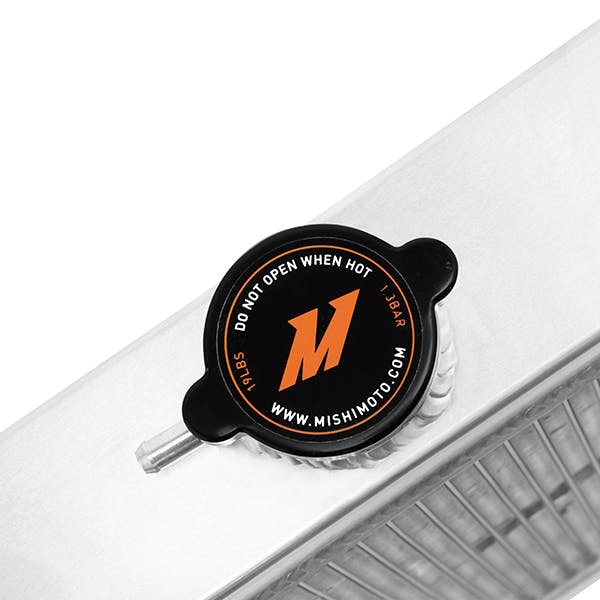

| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity |
| SellingPoint02 |
3-row core |
| SellingPoint03 |
Increased coolant capacity and optimal heat dissipation |
| SellingPoint04 |
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions |
| SellingPoint05 |
Billet aluminum fill neck |
| SellingPoint06 |
Brazed aluminum core with TIG-welded end tanks |
| SellingPoint07 |
Includes magnetic drain plug to capture metallic debris and fragments in your cooling system |
| SellingPoint08 |
Mishimoto Lifetime Warranty |
| SellingPoint09 |
N/A |
| SellingPoint1 |
All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
3-row core |
| SellingPoint3 |
Increased coolant capacity and optimal heat dissipation |
| SellingPoint4 |
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions |
| SellingPoint5 |
Billet aluminum fill neck |
| SellingPoint6 |
Brazed aluminum core with TIG-welded end tanks |
| SellingPoint7 |
Includes magnetic drain plug to capture metallic debris and fragments in your cooling system |
| SellingPoint8 |
Mishimoto Lifetime Warranty |
| SellingPoint9 |
N/A |
| TechSpec Applications |
1970-1971 Dodge Challenger--1970-1972 Dodge Charger--1970-1973 Dodge Coronet--1970-1973 Plymouth Barracuda--1972-1973 Plymouth Roadrunner--1971-1973 Plymouth Satellite |
| TechSpec Chassis Codes |
B - Body--E - Body |
| TechSpec Core Height (in) |
15.9 |
| TechSpec Core Length (in) |
22.1 |
| TechSpec Core Thickness (in) |
2.5 |
| TechSpec DPI |
2374 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
318ci (5.2L) V8 |
| TechSpec Fluid Capacity (gal) |
5.07 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.5 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
Transmission Cooler Thread Info:--On Radiator: Female 1/8-inch-27NPT |
| TechSpec Outlet (in) |
1.75 |
| TechSpec Overall Height (in) |
25.7 |
| TechSpec Overall Length (in) |
21.3 |
| TechSpec Overall Width (in) |
5 |
| TechSpec Overall Width (ins) |
5 |
| TechSpec Rows |
3 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
Yes |
| GTIN |
00748354019797 |
