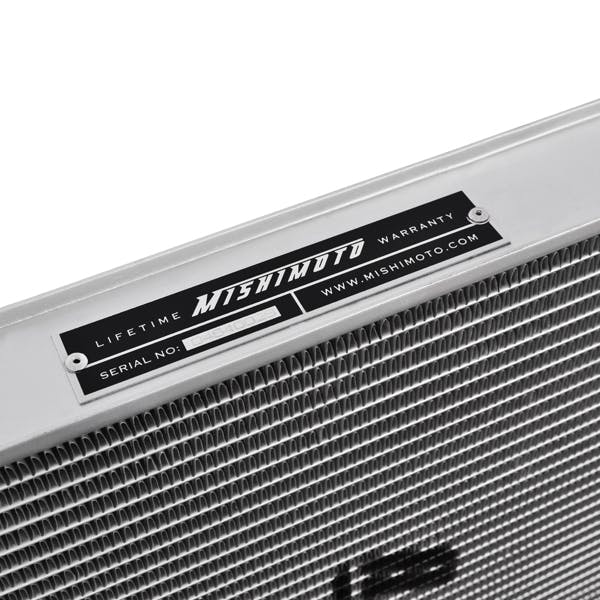

Performance Aluminum Radiator, fits Toyota Celica GT4 1989-1993
The Toyota Celica is ideal for engine upgrades and modifications that can provide substantial horsepower and torque increases.By replacing your current Celica radiator with a Mishimoto performance aluminum radiator, you will undoubtedly notice a cooler running engine.The Mishimoto Toyota Celica aluminum radiators are designed and engineered to maximize cooling efficiency and protect your car from the overheating.Installation is effortless with a direct OEM fit - no cutting or modification is required.
- Direct fit for the 1989–1994 Toyota Celica GT-Four/All-trac
- Full aluminum design featuring robust TIG-welded construction
- Ideal replacement for the failure-prone stock plastic end tank radiator
- Features a two-row, 2.04" thick brazed aluminum core which provides efficient fluid temperature reduction
- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Perfect for use under stressful driving conditions such as autocross, rallycross, or track events
- Includes Magnetic Drain
- Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
Information:
Toyota Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 1990-1993 |
Toyota Celica |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
27.5 |
| Core Length |
12.52 |
| Core Material |
Aluminum |
| Core Thickness |
2.04 |
| Country of Origin (Primary) |
CN |
| Dimensions |
28.1in x 17.3in x 2.54in |
| Down Flow Or Cross Flow Type |
Down Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
1.94 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.25 |
| Inlet Location |
Top Left |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.25 |
| Outlet Location |
Bottom Right |
| Overall Height |
28.1 |
| Overall Length |
17.3 |
| Overall Width |
2.54 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 1989-1994 Toyota Celica GT-Four/All-trac |
| SellingPoint02 |
Full aluminum design featuring robust TIG-welded construction |
| SellingPoint03 |
Ideal replacement for the failure-prone stock plastic end tank radiator |
| SellingPoint04 |
Features a two-row, 2.04-in thick brazed aluminum core which provides efficient fluid temperature reduction |
| SellingPoint05 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint06 |
Perfect for use under stressful driving conditions such as autocross, rallycross, or track events |
| SellingPoint07 |
Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance |
| SellingPoint08 |
Mishimoto Lifetime Warranty |
| SellingPoint09 |
N/A |
| SellingPoint1 |
Direct fit for the 1989-1994 Toyota Celica GT-Four/All-trac |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum design featuring robust TIG-welded construction |
| SellingPoint3 |
Ideal replacement for the failure-prone stock plastic end tank radiator |
| SellingPoint4 |
Features a two-row, 2.04-in thick brazed aluminum core which provides efficient fluid temperature reduction |
| SellingPoint5 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint6 |
Perfect for use under stressful driving conditions such as autocross, rallycross, or track events |
| SellingPoint7 |
Includes Magnetic Drain |
| SellingPoint8 |
Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint9 |
Mishimoto Lifetime Warranty |
| TechSpec Applications |
N/A |
| TechSpec Chassis Codes |
ST185 |
| TechSpec Core Height (in) |
27.5 |
| TechSpec Core Length (in) |
12.52 |
| TechSpec Core Thickness (in) |
2.04 |
| TechSpec DPI |
1174 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
3S-GTE |
| TechSpec Fluid Capacity (gal) |
1.94 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.25 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
N/A |
| TechSpec Outlet (in) |
1.25 |
| TechSpec Overall Height (in) |
28.1 |
| TechSpec Overall Length (in) |
17.3 |
| TechSpec Overall Width (in) |
2.54 |
| TechSpec Overall Width (ins) |
2.54 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354807103 |
