3-Row Performance Aluminum Radiator, fits Chevrolet Camaro / Pontiac Firebird 1982-1992
A street or track muscle car demands a reliable cooling system.Outfit your Chevrolet Camaro or Pontiac Firebird with the ultimate upgrade in cooling efficiency.The Mishimoto Aluminum Radiator utilizes a massive 3 row core with precision TIG welded aluminum end tanks for increased reliability and cooling efficiency.Not only will the Mishimoto radiator keep coolant temperatures at bay but the built in transmission cooler will improve the performance and extend the life of your transmission.The Mishimoto Aluminum Radiator is a direct fit product that requires no cutting or trimming and is protected by our lifetime warranty.
- Direct fit for the 1982-1992 Chevrolet Camaro w/ L6 and V8 engines
- Full aluminum radiator featuring robust TIG-welded construction
- Massive three-row, 2.05 thick brazed aluminum core provides efficient fluid temperature reduction on the street or strip

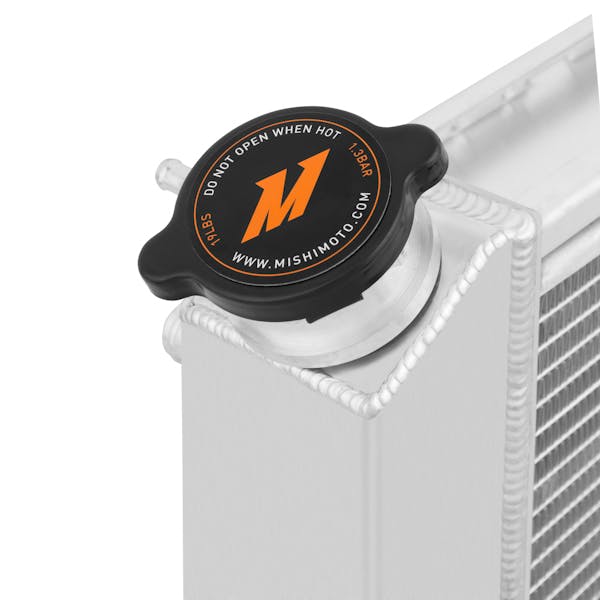

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Polished aluminum end tanks enhance engine bay aesthetics
- Includes Mishimoto M12 x 1.5 Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
Information:
Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 1982-1992 |
Chevrolet Camaro |
| 1989 |
GMC P2500 |
| 1989-1990 |
GMC P3500 |
| 1982-1992 |
Pontiac Firebird |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
16.69 |
| Core Length |
26.18 |
| Core Material |
Aluminum |
| Core Thickness |
2.16 |
| Country of Origin (Primary) |
CN |
| Down Flow Or Cross Flow Type |
Cross Flow |
| Drain Plug Included |
Yes |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.34 |
| Inlet Location |
Top Left |
| Install Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.57 |
| Outlet Location |
Bottom Right |
| Overall Height |
31.5 |
| Overall Length |
19.5 |
| Overall Width |
5 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 1982-1992 Chevrolet Camaro w/ L6 and V8 engines |
| SellingPoint02 |
Full aluminum radiator featuring robust TIG-welded construction |
| SellingPoint03 |
Massive three-row, 2.05-in thick brazed aluminum core provides efficient fluid temperature reduction on the street or strip |
| SellingPoint04 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint05 |
Polished aluminum end tanks enhance engine bay aesthetics |
| SellingPoint06 |
Includes Mishimoto M12 x 1.5-in Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint07 |
Mishimoto Lifetime Warranty |
| SellingPoint08 |
N/A |
| SellingPoint09 |
N/A |
| SellingPoint1 |
Direct fit for the 1982-1992 Chevrolet Camaro w/ L6 and V8 engines |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum radiator featuring robust TIG-welded construction |
| SellingPoint3 |
Massive three-row, 2.05-in thick brazed aluminum core provides efficient fluid temperature reduction on the street or strip |
| SellingPoint4 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint5 |
Polished aluminum end tanks enhance engine bay aesthetics |
| SellingPoint6 |
Includes Mishimoto M12 x 1.5-in Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint7 |
Mishimoto Lifetime Warranty |
| SellingPoint8 |
N/A |
| SellingPoint9 |
N/A |
| TechSpec Applications |
1982-1992 Chevrolet Camaro L6 & V8--1982-1992 Pontiac Firebird Trans Am |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Height (in) |
16.69 |
| TechSpec Core Length (in) |
26.18 |
| TechSpec Core Thickness (in) |
2.16 |
| TechSpec DPI |
951 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
V6--V8 |
| TechSpec Fluid Capacity (gal) |
N/A |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal-- 1/8-inch NPT Plug-- 1/4-inch NPT Plugs--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.34 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
N/A |
| TechSpec Outlet (in) |
1.57 |
| TechSpec Overall Height (in) |
31.5 |
| TechSpec Overall Length (in) |
19.5 |
| TechSpec Overall Width (in) |
5 |
| TechSpec Overall Width (ins) |
5 |
| TechSpec Rows |
3 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
Yes |
| GTIN |
00748354018011 |
