Performance Aluminum Radiator, fits Toyota Corolla 1983-1987
The performance aluminum radiator is the ideal upgrade to the stock radiator especially for those looking to enhance the overall performance and lifetime of their engine.With a direct OEM fit installation is effortless, no cutting or modification is required.All Mishimoto radiators are designed and engineered to maximize cooling efficiency and most importantly protect your vehicle from overheating.Fits the Dodge Stealth and the Mitsubishi 300GT.
- Direct fit for the 1983-1987 Toyota Corolla 1.6L
- Full aluminum construction featuring high-quality, durable TIG-welding
- Two-row, 2.05 thick brazed aluminum core for optimal heat transfer
- Effectively regulates fluid temperatures, ideal for use during aggressive driving such as drifting, autocross, rallycross, track days, etc.

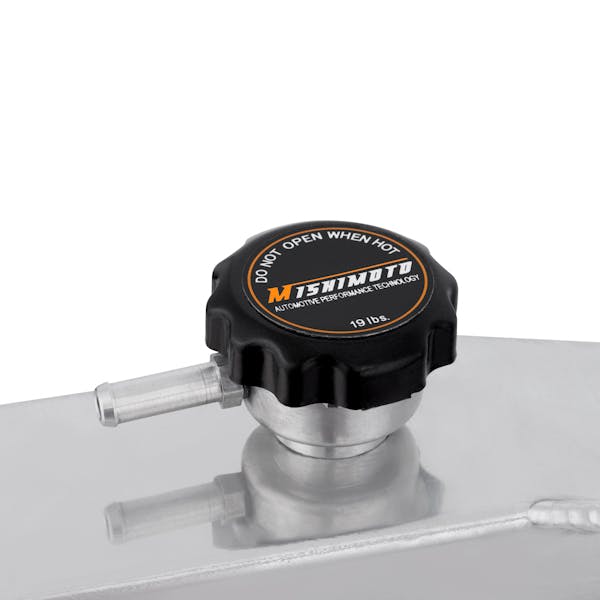

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain
- Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
Information:
Toyota Aluminum Radiator
Application Summary:
| Year |
Make/Model |
| 1984-1987 |
Toyota Corolla |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
12.79 |
| Core Length |
22.16 |
| Core Material |
Aluminum |
| Core Thickness |
2.05 |
| Country of Origin (Primary) |
CN |
| Dimensions |
23.2in x 18.3in x 2.05in |
| Down Flow Or Cross Flow Type |
Down Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
1.67 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.25 |
| Inlet Location |
Top Right |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.25 |
| Outlet Location |
Bottom Right |
| Overall Height |
23.15 |
| Overall Length |
18.3 |
| Overall Width |
3.81 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 1983-1987 Toyota Corolla AE86 1.6L RWD |
| SellingPoint02 |
Full aluminum construction featuring high-quality, durable TIG-welding |
| SellingPoint03 |
Two-row, 2.05-in thick brazed aluminum core for optimal heat transfer |
| SellingPoint04 |
Effectively regulates fluid temperatures, ideal for use during aggressive driving such as drifting, autocross, rallycross, track days, etc. |
| SellingPoint05 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint06 |
Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance |
| SellingPoint07 |
Mishimoto Lifetime Warranty |
| SellingPoint08 |
N/A |
| SellingPoint09 |
N/A |
| SellingPoint1 |
Direct fit for the 1983-1987 Toyota Corolla 1.6L |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction featuring high-quality, durable TIG-welding |
| SellingPoint3 |
Two-row, 2.05-in thick brazed aluminum core for optimal heat transfer |
| SellingPoint4 |
Effectively regulates fluid temperatures, ideal for use during aggressive driving such as drifting, autocross, rallycross, track days, etc. |
| SellingPoint5 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint6 |
Includes Magnetic Drain |
| SellingPoint7 |
Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint8 |
Mishimoto Lifetime Warranty |
| SellingPoint9 |
N/A |
| TechSpec Applications |
N/A |
| TechSpec Chassis Codes |
AE86 |
| TechSpec Core Height (in) |
12.79 |
| TechSpec Core Length (in) |
22.16 |
| TechSpec Core Thickness (in) |
2.05 |
| TechSpec DPI |
747 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
4A-GEC4A-GEU4A-C4A-U |
| TechSpec Fluid Capacity (gal) |
1.67 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.25 |
| TechSpec Material |
N/A |
| TechSpec Note |
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit. |
| TechSpec Outlet (in) |
1.25 |
| TechSpec Overall Height (in) |
23.15 |
| TechSpec Overall Length (in) |
18.3 |
| TechSpec Overall Width (in) |
3.81 |
| TechSpec Overall Width (ins) |
3.81 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354797800 |
