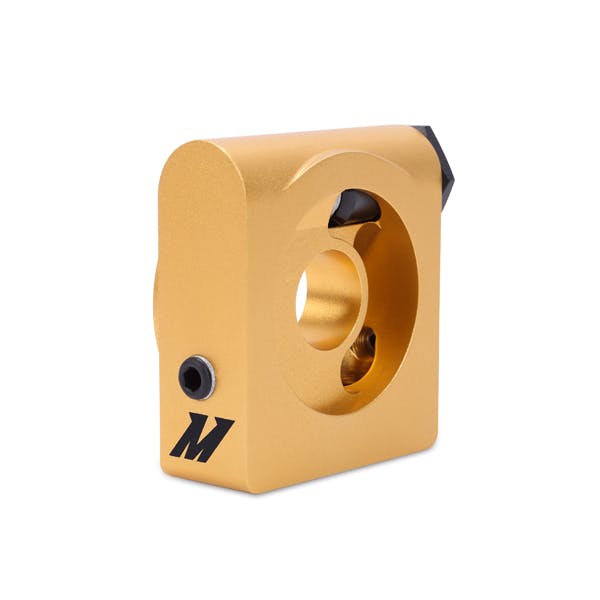

Mishimoto M22 X 1.5 Sandwich Plate with Rear-Mounted Thermostat
this provides improved warm-up while maintaining efficient cooling properties. Thanks to a small footprint and rear-mounted thermostat, the Mishimoto'sandwich plate can be installed in even the tightest engine bays where the exhaust or other engine components create strict space constraints. This sandwich plate includes two 1/8-inch NPT ports for use with temperature or pressure sensors. The included M22 X 1.5 sandwich plate adapter allows for fitment on various GM LSX vehicles and Ford V8's including the 4.6L, 5.4L, and Coyote 5.0L. For more specific fitment information, check our tech specs below! As with all our products, this sandwich plate includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
- Constructed from billet 6061 CNC-machined aluminum
- Two 1/8" NPT ports for sensors, oil feeds, etc
- Built-in thermostat (185°F, 85°C)
- Square O-ring design for superior sealing
- M22 X 1.5 thread pitch fits numerous Ford and GM engines; see tech specs for specific details
- Easily replaceable thermostat allows you to customize your fluid temperature
- Additional thermostats available in 160°F, 185°F, and 200°F
- Mishimoto Lifetime Warranty
Information:
Mounted Thermostat
Application Summary:
| Year |
Make/Model |
| Universal |
Fitment |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color |
Gold, Gold |
| Country of Origin (Primary) |
CN |
| Finish |
Anodized |
| Gasket Or Seal Included |
Yes |
| Hazardous Material Code |
N |
| Install Difficulty |
2 |
| Installation Difficulty |
2 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum, 6061 Aluminum |
| NAFTA Preference Criterion Code |
B |
| Port Quantity |
2 |
| SDR Required Flag |
N |
| SellingPoint01 |
Constructed from billet 6061 CNC-machined aluminum |
| SellingPoint02 |
Two 1/8-in NPT ports for sensors, oil feeds, etc |
| SellingPoint03 |
Built-in thermostat (185 F, 85 C) |
| SellingPoint04 |
Square O-ring design for superior sealing |
| SellingPoint05 |
M22 X 1.5 thread pitch fits numerous Ford and GM engines; see tech specs for specific details |
| SellingPoint06 |
Thermostat is interchangeable with alternate temperatures (160 F, 200 F) for additional fluid temperature regulation |
| SellingPoint07 |
Mishimoto Lifetime Warranty |
| SellingPoint08 |
N/A |
| SellingPoint09 |
N/A |
| SellingPoint1 |
Constructed from billet 6061 CNC-machined aluminum |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Two 1/8-in NPT ports for sensors, oil feeds, etc |
| SellingPoint3 |
Built-in thermostat (185 F, 85 C) |
| SellingPoint4 |
Square O-ring design for superior sealing |
| SellingPoint5 |
M22 X 1.5 thread pitch fits numerous Ford and GM engines; see tech specs for specific details |
| SellingPoint6 |
Thermostat is interchangeable with alternate temperatures (160 F, 200 F) for additional fluid temperature regulation |
| SellingPoint7 |
Mishimoto Lifetime Warranty |
| SellingPoint8 |
N/A |
| SellingPoint9 |
N/A |
| TechSpec Applications |
2008+ Chrysler/Dodge V8 Engines--1992+ Ford/Lincoln/Mercury 4.6L, 5.0L, 5.4L V8 Engines--1995+ Ford/Lincoln/Mercury 2.5L Engine--1995+ Ford/Lincoln/Mercury 3.0L (24V) Engine--1984-1987 Honda Civic / CRX--1986-1987 Acura Integra--1999+ Ford 6.8L V10 Engine |
| TechSpec Caution |
It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team. |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Construction |
N/A |
| TechSpec Core Height (in) |
N/A |
| TechSpec Core Length (in) |
N/A |
| TechSpec Core Thickness (in) |
N/A |
| TechSpec Engine Codes |
N/A |
| TechSpec Fluid Capacity (qts) |
N/A |
| TechSpec Includes |
Oil Sandwich Plate--Rubber O-ring--Built-in Thermostat--Stainless Steel Sandwich Plate Adapter, M22 x 1.5--Black 1/8-in NPT Plugs--Mishimoto Lifetime Warranty |
| TechSpec Inlet |
N/A |
| TechSpec Installation Notes |
Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb |
| TechSpec Note |
N/A |
| TechSpec Outlet |
N/A |
| TechSpec Overall Height (in) |
3.19 |
| TechSpec Overall Length (in) |
2.8 |
| TechSpec Overall Width (in) |
1.18 |
| TechSpec Rows |
N/A |
| Thickness |
1 |
