Oil Cooler Kit, fits Subaru BRZ/Scion FR-S 2013+

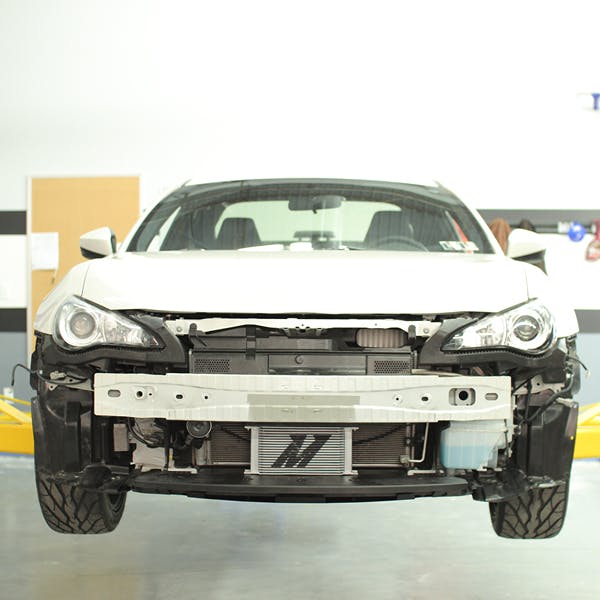

Mishimoto proudly announces the all-new direct-fit oil kIt'specifically designed for the Subaru BRZ / Scion FR-S.This direct-fit kit positions a large cooler in the front bumper for ample airflow and optimal cooling, which is perfect for your street or track BRZ/FR-S.Properly regulated oil temperatures will result in improved durability and longevity for your stock or modified 2.0L.This kit features all components for seamless bolt-on fitment.This direct-fit oil cooler kIt'substantially decreases oil temperatures, making it ideal for a hot day at the track or a spirited drive in the mountains.The Mishimoto BRZ / FR-S Oil Cooler Kit is offered with both black and silver coolers and includes our signature lifetime warranty.
- Direct fit for the 2013+ Scion FR-S and Subaru BRZ
- Application-specific mounting brackets
- 19-row stacked-plate oil cooler for optimal fluid temperature reduction

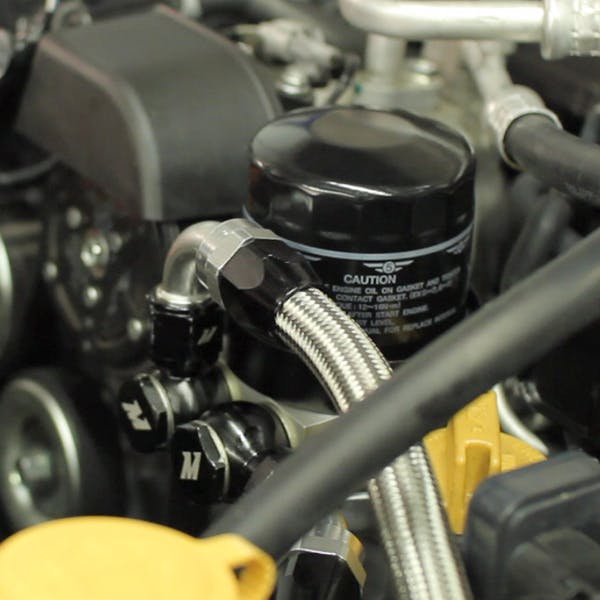

- Billet aluminum oil sandwich plate in standard or thermostatic form
- Mishimoto Lifetime Warranty
Information:
Scion FR Kit, Black
Application Summary:
| Year |
Make/Model |
| 2013-2016 |
Scion FR-S |
| 2013-2020 |
Subaru BRZ |
| 2017-2020 |
Toyota 86 |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color |
Black, Black |
| Core Color |
Black |
| Core Height |
5.43 |
| Core Thickness |
1.97 |
| Core Type |
Bar-and-Plate |
| Core Width |
11 |
| Country of Origin (Primary) |
CN |
| Finish |
Anodized |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708998180 |
| Hazardous Material Code |
N |
| Inlet Fitting Gender |
Male |
| Inlet Fitting Type |
AN Flare |
| Install Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| OptionLabel |
Black Cooler, Non-Thermostatic |
| Outlet Fitting Gender |
Male |
| Outlet Fitting Type |
AN Flare |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 2013-2021 Scion FR-S and Subaru BRZ |
| SellingPoint02 |
Application-specific mounting brackets |
| SellingPoint03 |
Premade braided stainless steel oil lines with durable -AN fittings |
| SellingPoint04 |
Billet aluminum oil sandwich plate in standard or thermostatic form |
| SellingPoint05 |
19-row stacked-plate oil cooler for optimal fluid temperature reduction |
| SellingPoint06 |
CNC-machined aluminum spacers for the oil sandwich plate |
| SellingPoint07 |
Increases oil capacity by .65 qt |
| SellingPoint08 |
Mishimoto Lifetime Warranty |
| SellingPoint09 |
N/A |
| SellingPoint1 |
Direct fit for the 2013+ Scion FR-S and Subaru BRZ |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Application-specific mounting brackets |
| SellingPoint3 |
Premade braided stainless steel oil lines with durable -AN fittings |
| SellingPoint4 |
Billet aluminum oil sandwich plate in standard or thermostatic form |
| SellingPoint5 |
19-row stacked-plate oil cooler for optimal fluid temperature reduction |
| SellingPoint6 |
CNC-machined aluminum spacers for the oil sandwich plate |
| SellingPoint7 |
Increases oil capacity by .65 qt |
| SellingPoint8 |
Mishimoto Lifetime Warranty |
| SellingPoint9 |
N/A |
| TechSpec Applications |
2013-2021 Subaru BRZ--2013-2021 Scion FR-S--2013-2021 Toyota GT86 |
| TechSpec Caution |
It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. |
| TechSpec Chassis Codes |
ZN6--ZC6 |
| TechSpec Core Construction |
N/A |
| TechSpec Core Height (in) |
5.43 |
| TechSpec Core Length (in) |
11 |
| TechSpec Core Thickness (in) |
1.97 |
| TechSpec Engine Codes |
FA20 |
| TechSpec Fluid Capacity (qts) |
N/A |
| TechSpec Includes |
Application-Specific Mounting Bracket--19-Row Oil Cooler--3-ft Stainless Steel Braided Hose w/ -10AN Fittings--4-ft 2-in Stainless Steel Braided Hose w/ -10AN Fittings--Oil Sandwich Plate--6061 Aluminum CNC Sandwich Plate Spacers, Black--Stainless Steel Sandwich Plate Adapter, M20--Banjo Fitting w/ Bolt M20 x -10AN, Black--1/8-in NPT Plugs--O-rings--Mounting Hardware Set--Mishimoto Lifetime Warranty |
| TechSpec Inlet |
N/A |
| TechSpec Installation Notes |
Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb |
| TechSpec Note |
N/A |
| TechSpec Outlet |
N/A |
| TechSpec Overall Height (in) |
N/A |
| TechSpec Overall Length (in) |
N/A |
| TechSpec Overall Length (in) |
N/A |
| TechSpec Overall Width (in) |
N/A |
| TechSpec Rows |
19 |
| GTIN |
00748666007468 |
