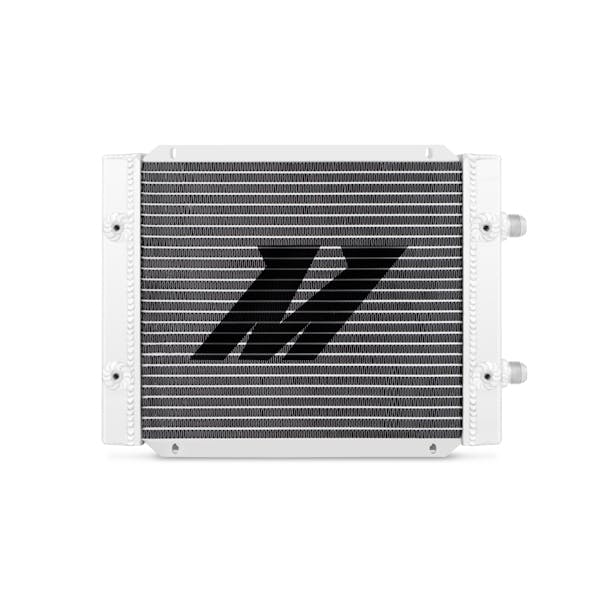

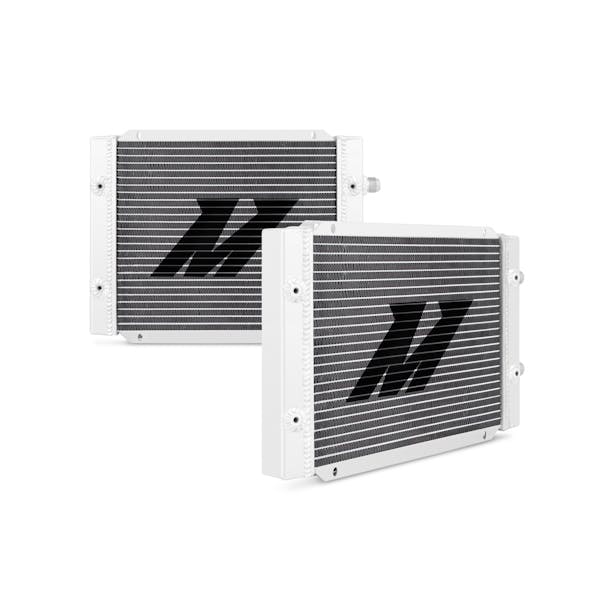

25-Row Dual Pass Fluid Cooler
Mishimoto has developed a brand new universal dual pass oil cooler for enthusiasts that demand the most from their vehicles.Keeping oil temperatures in control is crucial for a successful day at the track, street or strip.High engine oil temperatures can promote engine wear and lead to serious internal engine damage.The Mishimoto dual pass cooler is constructed from high pressure internal tubes rated to 120psi and is built to handle the most extreme conditions.The Mishimoto dual pass cooler offers an extremely large surface cooling area thanks to 8mm external fins so you can concentrate more on driving and less on temperatures.These coolers also possess the ability to cool all of your automotive fluids such as transmission and power steering fluid.As with all of our products the Mishimoto dual pass cooler is protected with our signature lifetime warranty.
- 25-row dual pass design for optimal fluid temperature reduction
- Extends life of high-wear engine components
- 8mm external fins provides large surface cooling area
- high pressure internal tubes rated to 120psi
- Can be used to cool transmission and power steering fluid
- Minimal pressure loss
- Mishimoto Lifetime Warranty
Information:
Oil Cooler
Application Summary:
| Year |
Make/Model |
| 2018-2021 |
Ford Mustang |
| Attributes |
| Base Height |
14.8 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color |
Silver |
| Core Color |
Silver |
| Core Height |
10.16 |
| Core Thickness |
1.42 |
| Core Type |
Bar-and-Plate |
| Core Width |
11.81 |
| Country of Origin (Primary) |
CN |
| Finish |
Anodized |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708998180 |
| Hazardous Material Code |
N |
| Inlet Fitting Gender |
Male |
| Inlet Fitting Type |
AN Flare |
| Inlet Outside Diameter |
0.625 |
| Install Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Fitting Gender |
Male |
| Outlet Fitting Type |
AN Flare |
| Outlet Outside Diameter |
0.625 |
| SDR Required Flag |
N |
| SellingPoint01 |
25-row dual pass design for optimal fluid temperature reduction |
| SellingPoint02 |
Extends life of high-wear engine components |
| SellingPoint03 |
8mm external fins provides large surface cooling area |
| SellingPoint04 |
High pressure internal tubes rated to 120psi |
| SellingPoint05 |
Can be used to cool transmission and power steering fluid |
| SellingPoint06 |
Minimal pressure loss |
| SellingPoint07 |
Mishimoto Lifetime Warranty |
| SellingPoint08 |
N/A |
| SellingPoint09 |
N/A |
| SellingPoint1 |
25-row dual pass design for optimal fluid temperature reduction |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Extends life of high-wear engine components |
| SellingPoint3 |
8mm external fins provides large surface cooling area |
| SellingPoint4 |
high pressure internal tubes rated to 120psi |
| SellingPoint5 |
Can be used to cool transmission and power steering fluid |
| SellingPoint6 |
Minimal pressure loss |
| SellingPoint7 |
Mishimoto Lifetime Warranty |
| SellingPoint8 |
N/A |
| SellingPoint9 |
N/A |
| TechSpec Applications |
N/A |
| TechSpec Caution |
N/A |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Construction |
N/A |
| TechSpec Core Height (in) |
10.16 |
| TechSpec Core Length (in) |
11.81 |
| TechSpec Core Thickness (in) |
1.42 |
| TechSpec Engine Codes |
N/A |
| TechSpec Fluid Capacity (qts) |
N/A |
| TechSpec Includes |
Mishimoto Oil Cooler--Mishimoto Lifetime Warranty |
| TechSpec Inlet |
-10AN |
| TechSpec Installation Notes |
N/A |
| TechSpec Note |
N/A |
| TechSpec Outlet |
-10AN |
| TechSpec Overall Height (in) |
14.8 |
| TechSpec Overall Length (in) |
11.57 |
| TechSpec Overall Length (in) |
11.57 |
| TechSpec Overall Width (in) |
1.77 |
| TechSpec Rows |
25 |
| Width |
1.77 |
| GTIN |
00748666002234 |
