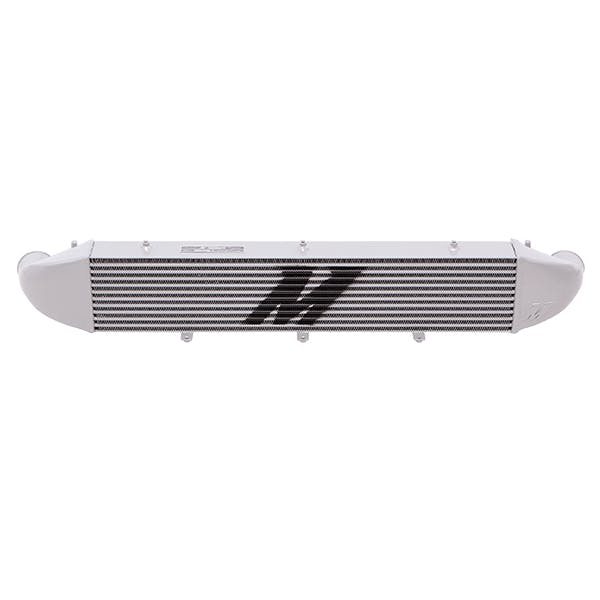

Performance Intercooler, fits Ford Fiesta ST 2014-2019
Many prototypes entered, but only one came out on top. The engineers went through multiple different designs for this 2014-2017 Fiesta ST intercooler, weighing the benefits and downfalls of each. The final design consists of a tube-and-fin style intercooler in order to allow airflow to the radiator and reduce overall weight. The core size is 51-percent larger than stock, and also provides a 25-percent increase in internal core volume. During testing, this 2014-2017 Fiesta ST intercooler dropped intake temperatures by a huge 26 F! This kit is designed to be a direct fit, and fits with the stock or Mishimoto 2014-2017 Fiesta ST Intercooler Pipes. Combine the two, and you'll have a complete high-performance charged air system. This 2014-2017 Fiesta ST intercooler kit includes air diversion plates to channel air through the cooler for maximum efficiency. The all-aluminum, TIG-welded construction is of the highest quality, and like all Mishimoto 2014-2017 Fiesta ST parts, it is backed by the Mishimoto Lifetime Warranty!
- Direct fit for the 2014-2019 Ford Fiesta ST
- 26 F reduction in AIT
- 51-percent increase in core size
- 25-percent increase in internal core volume and 226-percent increase in external fin surface area
- Mishimoto Lifetime Warranty
Information:
Ford Performance Intercooler
Application Summary:
| Year |
Make/Model |
| 2014-2019 |
Ford Fiesta |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| CARB EO Number |
D-759-6 |
| Color |
Silver |
| Core Color |
Silver |
| Core Height |
6.35 |
| Core Length |
28.8 |
| Core Material |
Aluminum |
| Core Thickness |
2.59 |
| Country of Origin (Primary) |
CN |
| Emission Code |
Legal US |
| Feature Bullet 1 |
Direct fit for the 2014+ Ford Fiesta ST |
| Feature Bullet 2 |
26 F reduction in AIT |
| Feature Bullet 3 |
51% increase in core size |
| Feature Bullet 4 |
25 percent increase in internal core volume and 226 percent increase in external fin surface area |
| Feature Bullet 5 |
Mishimoto Lifetime Warranty |
| Finish |
Polished |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708998180 |
| Hazardous Material Code |
N |
| Height |
6.36 |
| Inlet Fitting Gender |
Male |
| Inlet Outside Diameter |
2.55 |
| Inlet Tank Material |
Aluminum |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Length |
40.1 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| OptionLabel |
Silver |
| Outlet Fitting Gender |
Male |
| Outlet Outside Diameter |
2.55 |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct-fit for the 2014-2019 Ford Fiesta ST |
| SellingPoint02 |
26F (15C) reduction in AIT |
| SellingPoint03 |
51-percent increase in core size |
| SellingPoint04 |
25-percent increase in internal core volume and 226-percent increase in external fin surface area |
| SellingPoint05 |
Includes air diversion plates to direct air through the intercooler core for maximum efficiency |
| SellingPoint06 |
Stock location prevents airflow blockage to radiator and AC condenser |
| SellingPoint07 |
Tube and fin construction for added weight reduction over bar and plate cores |
| SellingPoint08 |

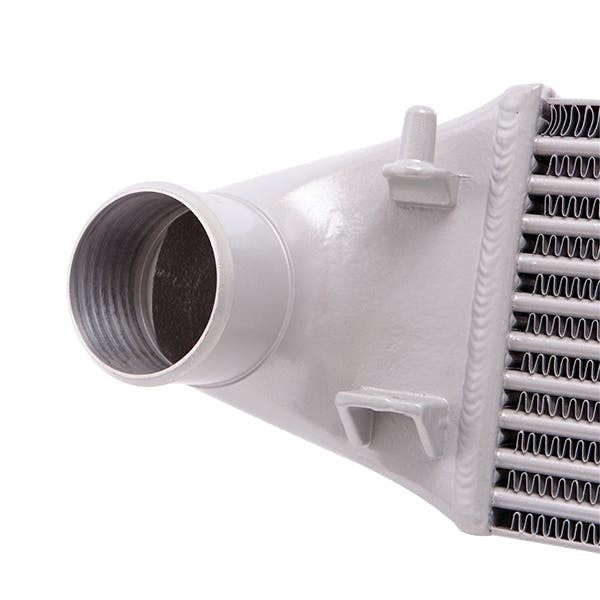

All-aluminum, TIG-welded |
| SellingPoint09 |
Available in Sleek Silver or Stealth Black or Bold Gold |
| SellingPoint1 |
Direct-fit for the 2014-2019 Ford Fiesta ST |
| SellingPoint10 |
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit |
| SellingPoint11 |
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits |
| SellingPoint12 |
Mishimoto Lifetime Warranty |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
26F (15C) reduction in AIT |
| SellingPoint3 |
51-percent increase in core size |
| SellingPoint4 |
25-percent increase in internal core volume and 226-percent increase in external fin surface area |
| SellingPoint5 |
Includes air diversion plates to direct air through the intercooler core for maximum efficiency |
| SellingPoint6 |
Stock location prevents airflow blockage to radiator and AC condenser |
| SellingPoint7 |
Tube and fin construction for added weight reduction over bar and plate cores |
| SellingPoint8 |
All-aluminum, TIG-welded |
| SellingPoint9 |
Available in Sleek Silver or Stealth Black or Bold Gold |
| TechSpec Applications |
2014-2019 Ford Fiesta ST |
| TechSpec Centerline Radius |
N/A |
| TechSpec Chassis Codes |
B3 |
| TechSpec Core Height (in) |
6.35 |
| TechSpec Core Length (in) |
28.8 |
| TechSpec Core Thickness (in) |
2.59 |
| TechSpec Core Type |
Tube-and-Fin |
| TechSpec Engine Codes |
1.6L Ecoboost |
| TechSpec Includes |
(1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
2.55 |
| TechSpec Installation Notes |
N/A |
| TechSpec Maximum Recommended Boost Pressure (PSI) |
40 |
| TechSpec Maximum Recommended Horsepower |
325 |
| TechSpec Note |
This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team. |
| TechSpec Outlet (in) |
2.55 |
| TechSpec Overall Height (in) |
6.36 |
| TechSpec Overall Length (in) |
40.1 |
| TechSpec Overall Width (in) |
6.15 |
| TechSpec Pipe Diameter |
N/A |
| TechSpec Pipe Length |
N/A |
| TechSpec Pipe Shape |
N/A |
| TechSpec Weight (lbs) |
13.4 |
| Type |
Tube-and-Fin |
| Universal Or Specific Fit |
Specific |
| Width |
6.15 |
| GTIN |
00748354027518 |
