Performance Intercooler Kit, fits Ford Fiesta ST 2014-2019

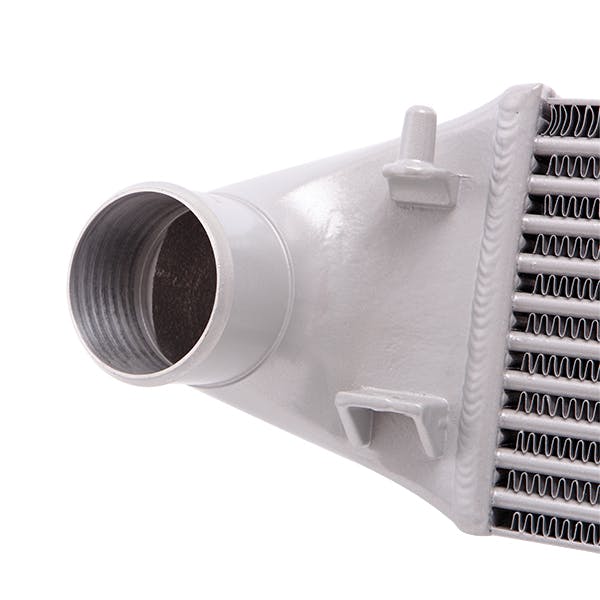

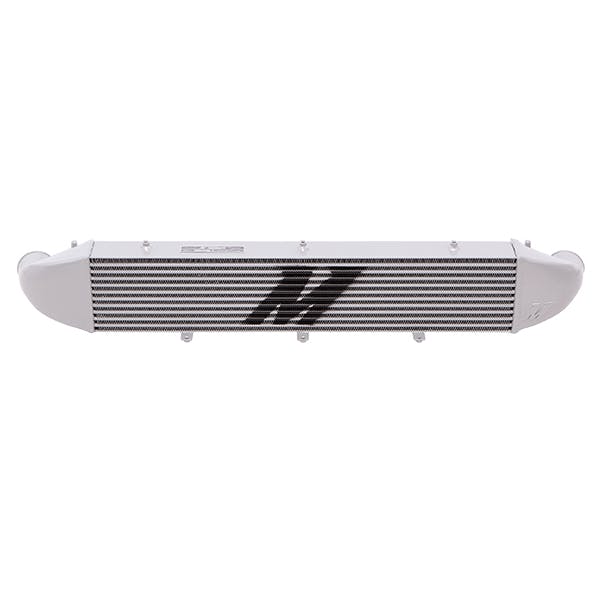

Many prototypes entered, but only one came out on top. The engineers went through multiple different designs for this Fiesta ST intercooler, weighing the benefits and downfalls of each. The final design consists of a tube-and-fin style intercooler in order to allow airflow to the radiator and reduce overall weight. The core size is 51-percent larger than stock, and also provides a 25-percent increase in internal core volume. During testing, this Fiesta ST intercooler dropped intake temperatures by a huge 26 F! This Fiesta ST intercooler kit includes air diversion plates to channel air through the cooler for maximum efficiency. The Mishimoto Fiesta ST cold-side intercooler pipe features a CNC-machined sensor flange for the stock pressure sensor, a port for meth injection or a boost gauge, and a silicone hose and CNC plug to allow deletion of the stock sound symposer system. Mishimoto's Fiesta ST intercooler piping features durable silicone couplers and stainless steel T-bolt clamps for reliable holding power when you're hitting full boost on a long straight. The all-aluminum, TIG-welded construction is of the highest quality, and like all Mishimoto Fiesta ST parts, it is backed by the Mishimoto Lifetime Warranty!
- 26 F (15 C) reduction in AIT
- 51-percent increase in core size and 25-percent increase in internal core volume
- Tube and fin construction for added weight reduction over bar and plate cores
- Max Recommended Horsepower: 325 whp
- Mishimoto Lifetime Warranty
Information:
Intercooler Kit
Application Summary:
| Year |
Make/Model |
| 2014-2016 |
Ford Fiesta |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color |
Silver |
| Core Color |
Silver |
| Core Height |
6.36 |
| Core Length |
40.1 |
| Core Material |
Aluminum |
| Core Thickness |
2.56 |
| Country of Origin (Primary) |
CN |
| Coupler Color |
Black |
| Emission Code |
Not in CA |
| Feature Bullet 1 |
26 F (15 C) reduction in AIT |
| Feature Bullet 2 |
51percent increase in core size and 25percent increase in internal core volume |
| Feature Bullet 3 |
Tube and fin construction for added weight reduction over bar and plate cores |
| Feature Bullet 4 |
Max Recommended Horsepower: 325 whp |
| Feature Bullet 5 |
Mishimoto Lifetime Warranty |
| Finish |
Powder-Coat |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708998180 |
| Hazardous Material Code |
N |
| Hose Clamps Included |
Yes |
| Inlet Diameter |
2.55 |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| Maximum Boost Pressure |
40 |
| NAFTA Preference Criterion Code |
B |
| OptionLabel |
Silver Cooler Black Pipes |
| Outlet Diameter |
2.55 |
| Pipe Color |
Black |
| Pipe Material |
Aluminum |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 2014-2019 Ford Fiesta ST |
| SellingPoint02 |
26F (15C) reduction in AIT |
| SellingPoint03 |
51-percent increase in core size |
| SellingPoint04 |
25-percent increase in internal core volume and 226-percent increase in external fin surface area |
| SellingPoint05 |
Replaces Hot Side and Cold Side Intercooler Pipes and Couplers |
| SellingPoint06 |
Includes air diversion plates to direct air through the intercooler core for maximum efficiency |
| SellingPoint07 |
Stock location prevents airflow blockage to radiator and AC condenser |
| SellingPoint08 |
Tube and fin construction for added weight reduction over bar and plate cores |
| SellingPoint09 |
All-aluminum, TIG-welded |
| SellingPoint1 |
Direct fit for the 2014-2019 Ford Fiesta ST |
| SellingPoint10 |
Available in Sleek Silver or Stealth Black or Bold Gold |
| SellingPoint11 |
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit |
| SellingPoint12 |
Intercooler Pipes Available in Wrinkle Black or Polished Finish |
| SellingPoint13 |
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits |
| SellingPoint14 |
Mishimoto Lifetime Warranty |
| SellingPoint15 |
N/A |
| SellingPoint2 |
26F (15C) reduction in AIT |
| SellingPoint3 |
51-percent increase in core size |
| SellingPoint4 |
25-percent increase in internal core volume and 226-percent increase in external fin surface area |
| SellingPoint5 |
Replaces Hot Side and Cold Side Intercooler Pipes and Couplers |
| SellingPoint6 |
Includes air diversion plates to direct air through the intercooler core for maximum efficiency |
| SellingPoint7 |
Stock location prevents airflow blockage to radiator and AC condenser |
| SellingPoint8 |
Tube and fin construction for added weight reduction over bar and plate cores |
| SellingPoint9 |
All-aluminum, TIG-welded |
| TechSpec Applications |
2014-2019 Ford Fiesta ST |
| TechSpec Centerline Radius |
N/A |
| TechSpec Chassis Codes |
B3 |
| TechSpec Core Height (in) |
6.36 |
| TechSpec Core Length (in) |
40.1 |
| TechSpec Core Thickness (in) |
2.56 |
| TechSpec Core Type |
Tube-and-Fin |
| TechSpec Engine Codes |
1.6L Ecoboost |
| TechSpec Includes |
(1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Aluminum Pipe w/ CNC Sensor Flange--(1) Aluminum Pipe--(1) CNC Sound Symposer Plug--(4) Silicone Couplers--(1) Silicone Sound Symposer Hose--(1) 1.75-in T-bolt Clamp--(1) 2.5-in T-bolt Clamp--(6) 2.75-in T-bolt Clamps--(1) Mounting Hardware--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
2.55 |
| TechSpec Installation Notes |
N/A |
| TechSpec Maximum Recommended Boost Pressure (PSI) |
40 |
| TechSpec Maximum Recommended Horsepower |
325 |
| TechSpec Note |
This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team. |
| TechSpec Outlet (in) |
2.55 |
| TechSpec Overall Height (in) |
6.36 |
| TechSpec Overall Length (in) |
40.1 |
| TechSpec Overall Width (in) |
6.15 |
| TechSpec Pipe Diameter |
N/A |
| TechSpec Pipe Length |
N/A |
| TechSpec Pipe Shape |
N/A |
| TechSpec Weight (lbs) |
13.4 |
| Universal Or Specific Fit |
Specific |
| GTIN |
00748354027556 |
